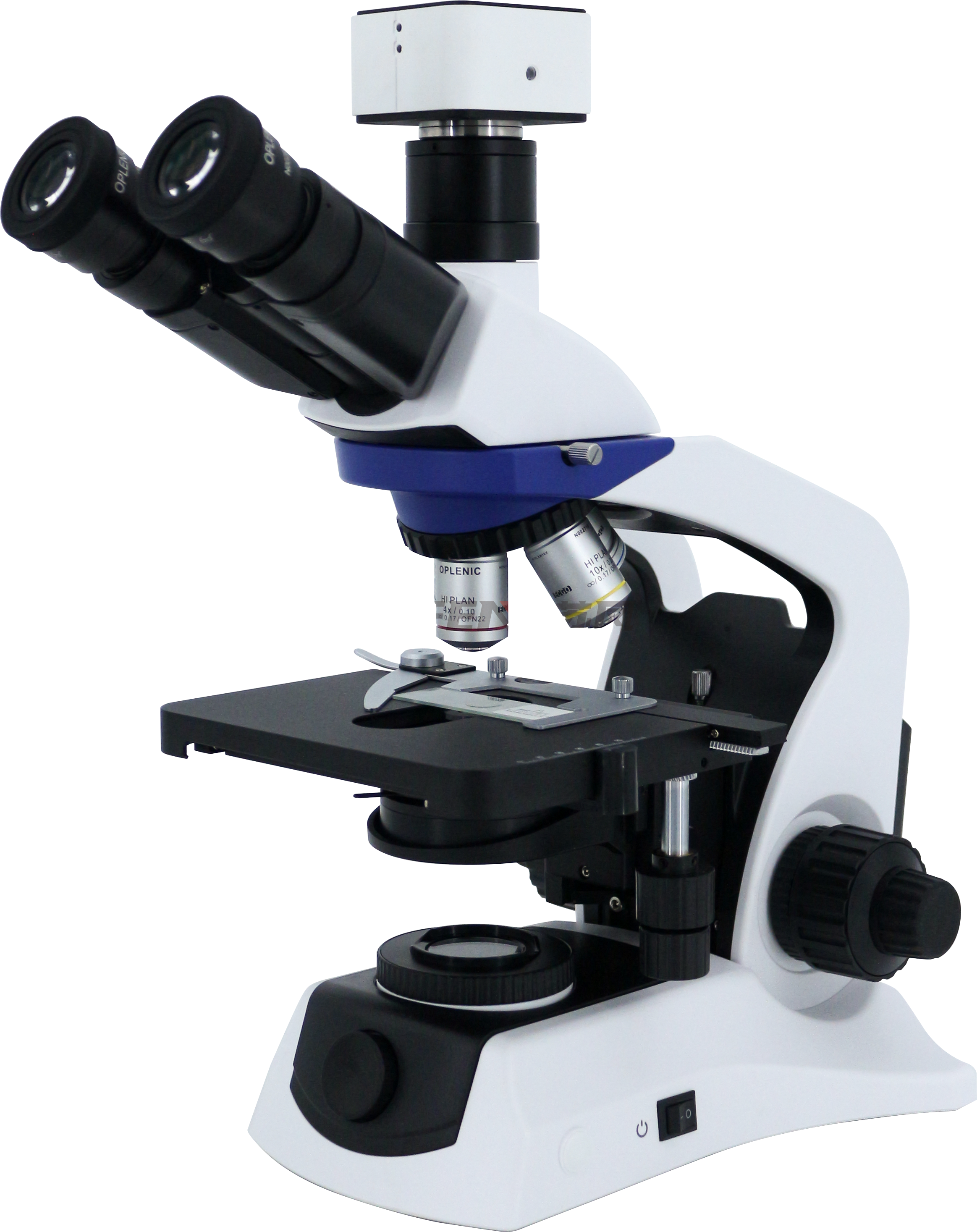

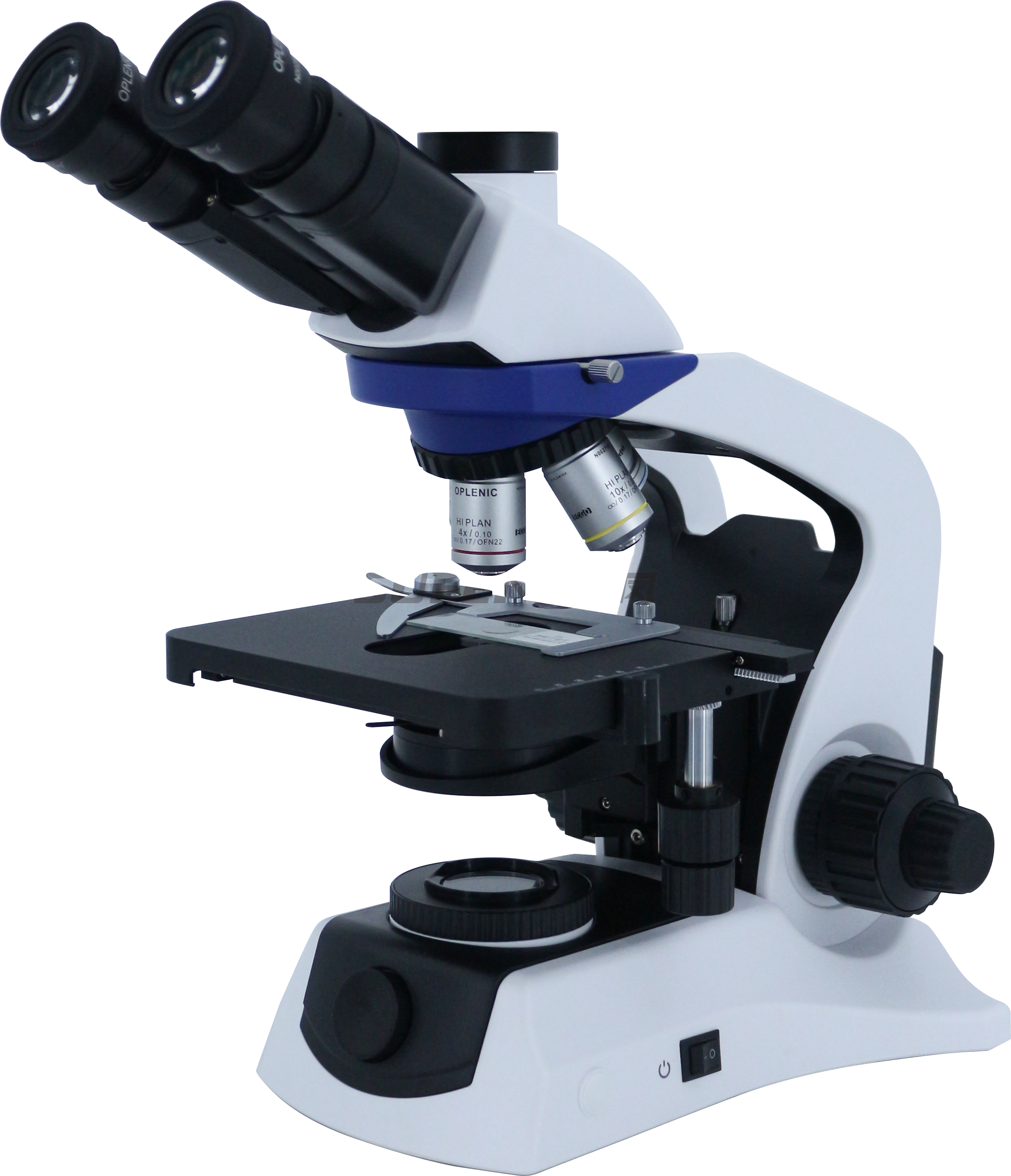

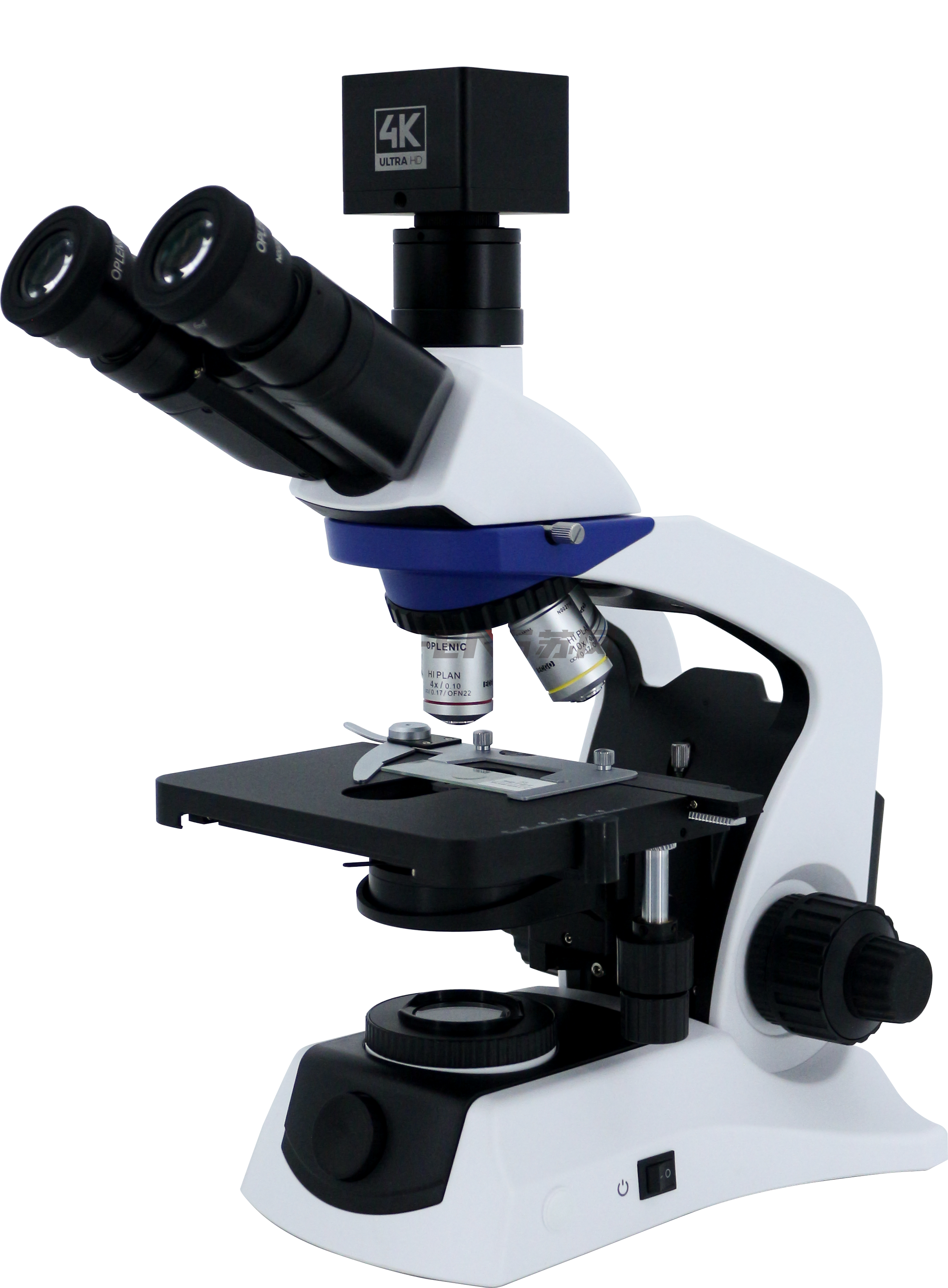

The DM-550 infinity optical system biological microscope features high-quality optical components and advanced design, offering excellent imaging quality and flexibility. It is powerful, with superior image quality, easy to operate and maintain. This microscope is an ideal tool for various biological and medical applications, such as cell culture, histological analysis, and pathological testing. It is widely used in research and teaching across fields including medicine, biology, and chemistry.
1、Full metal structure, three-mirror eyepiece, 30° tilt, pupil distance adjustment, 48-75 mm;
2、Total magnification of microscope optics (eyepiece multiplied by objective lens):40X-1600X;
3、Eyepiece lens: pure optical glass lens, optical components are coated, high eye point objective lens WF10X;
4、Objective lens: achromatic objective lens 4X,10X,40X (bullet), 100X (bullet oil);
5、Converter: four-hole inward inclined converter;
6、Slicing clip: single sample clip;
7、Support table: mechanically fixed support table 211 mm x 154 mm, moving range 76 mm x 52 mm;
8、Focus adjustment system: stage height adjustment (coarse adjustment: 15 mm), coarse adjustment knob per turn: 36.8 mm, focus adjustment knob tension can be adjusted, fine focus adjustment knob (minimum adjustment range: 2.5μm);
9、Spot lens: Abbe spot lens NA 1.25 (oil immersed), built-in aperture stop;
10、Light source: built-in transmissive lighting system, Kohler lighting (field of view aperture fixed);
11、Optional accessories: WF15X eyepiece, double sample holder, thin sample pad;
