Product Detail

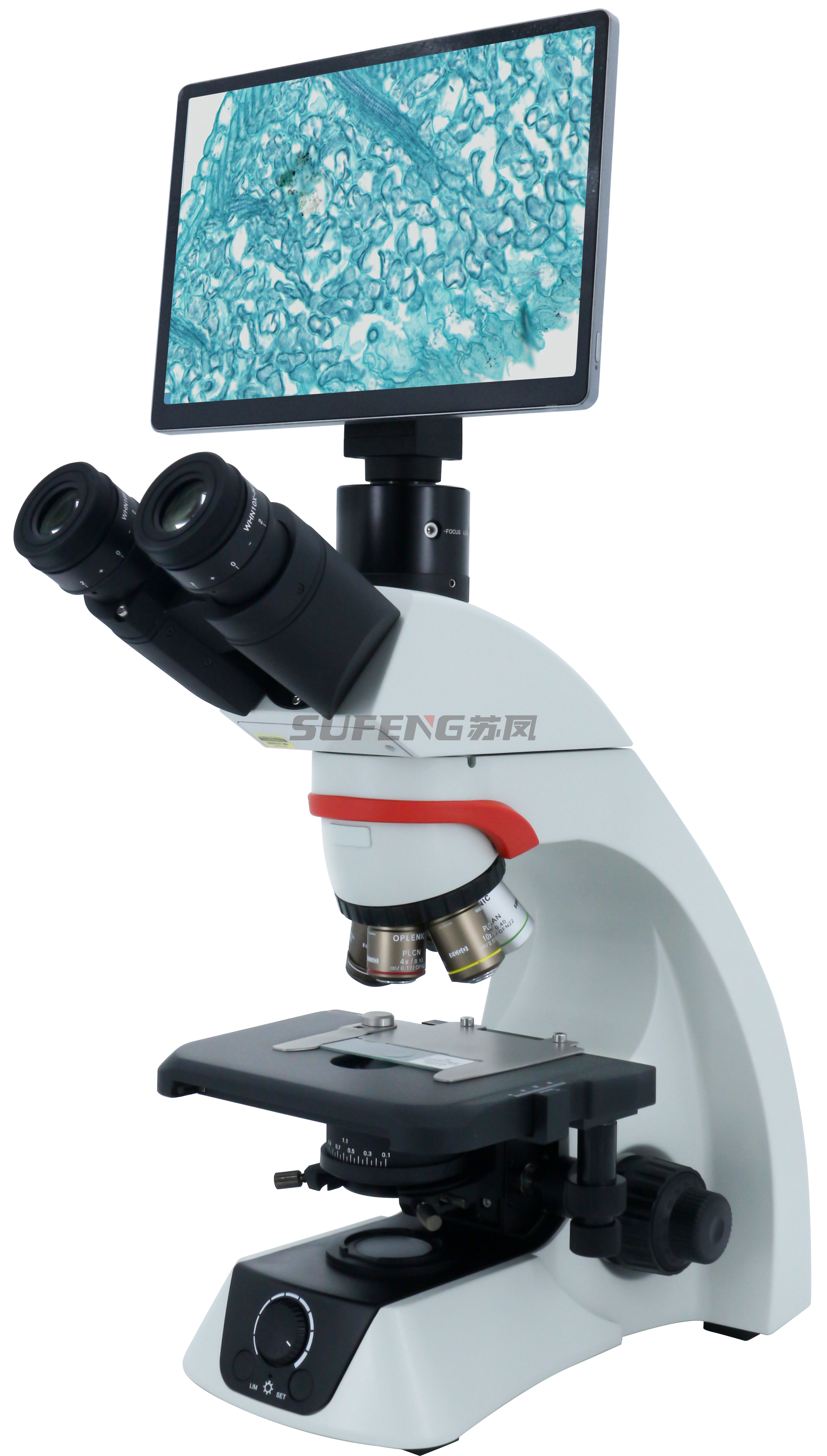

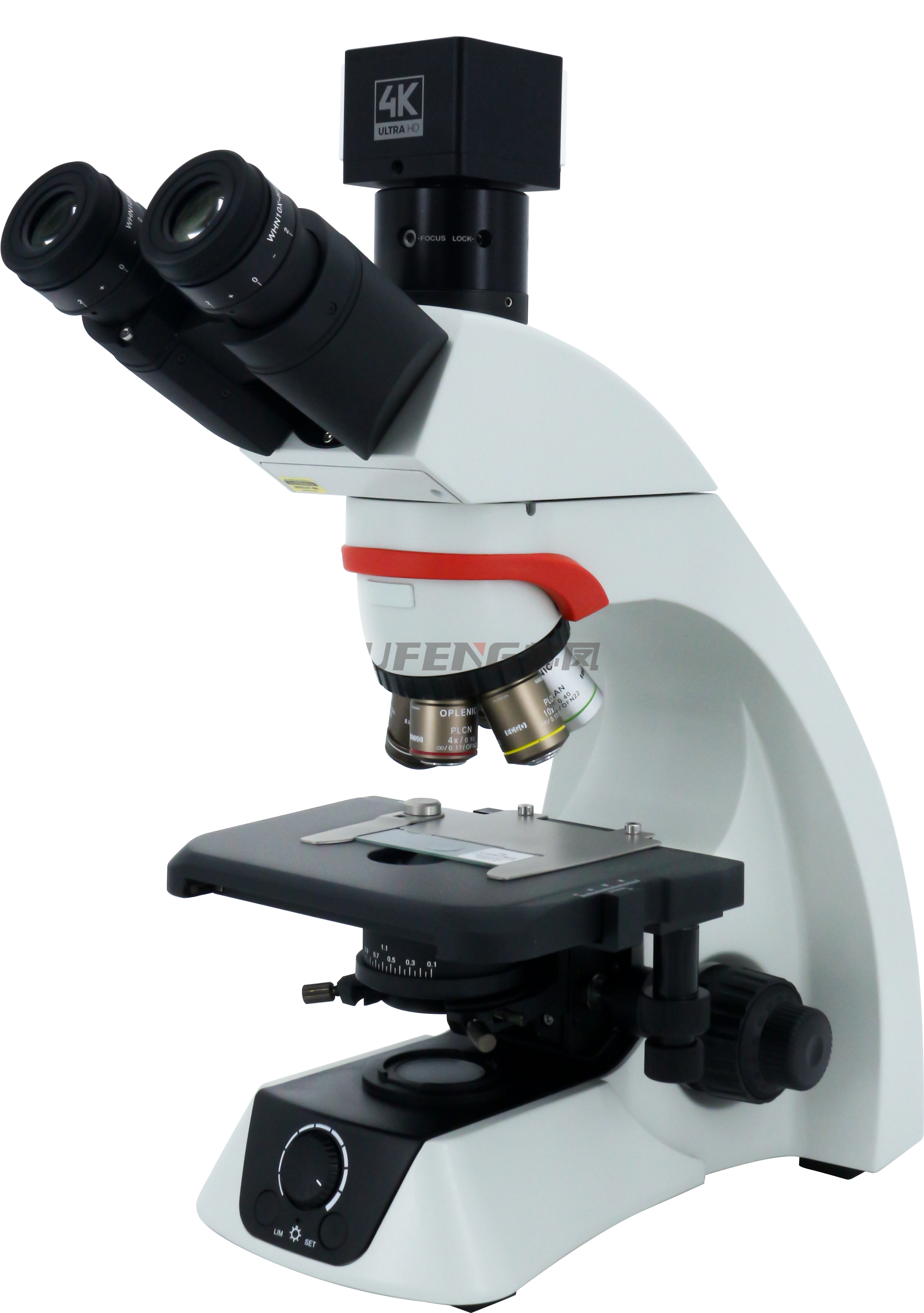

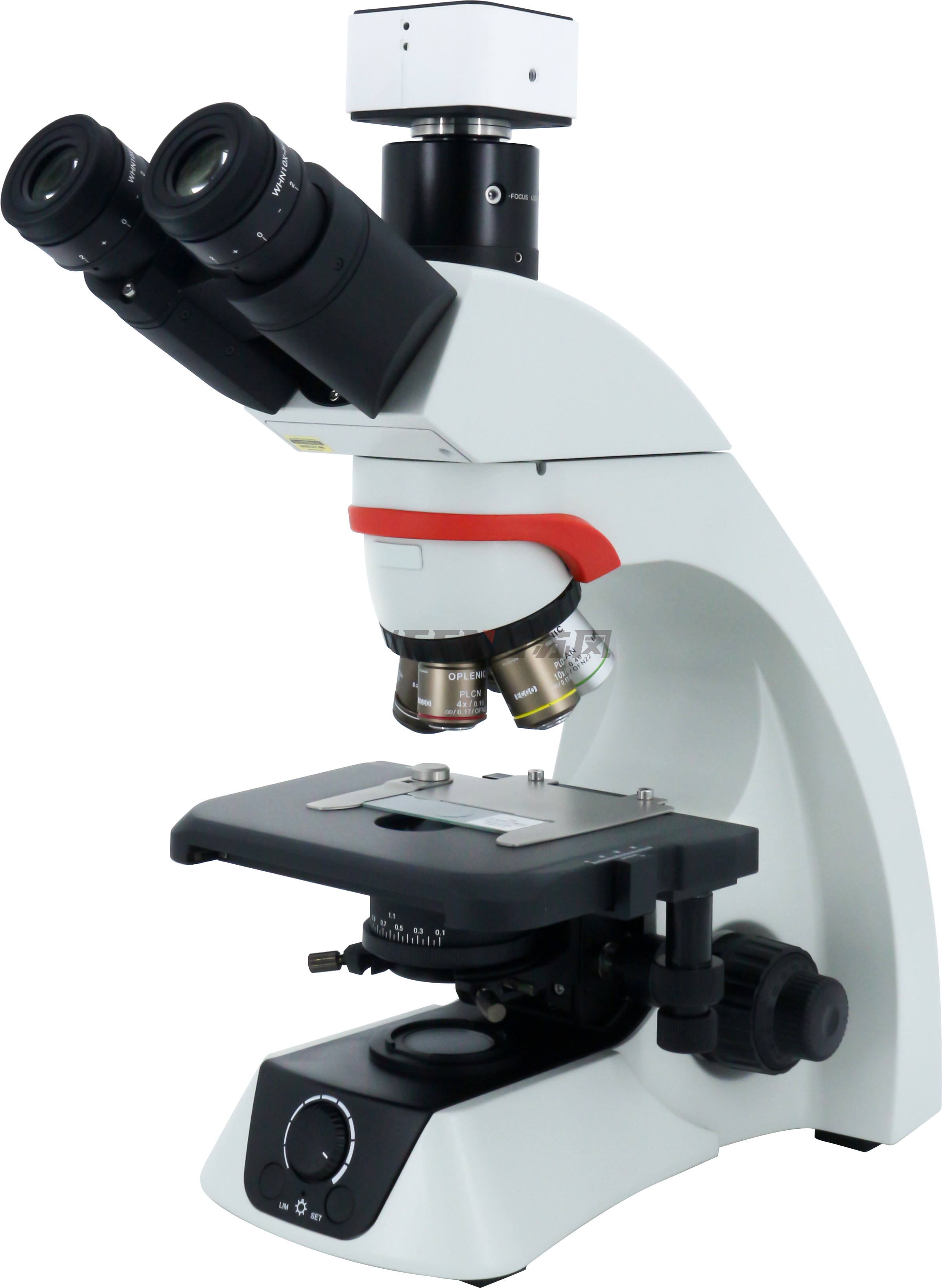

CX-33 Biological microscope parameters


The DM750 infinity optical system biological microscope features high-quality optical components and advanced design, offering excellent imaging quality and flexibility. It is powerful, with superior image quality, easy to operate and maintain. This microscope is an ideal tool for various biological and medical applications, such as cell culture, histological analysis, and pathological testing. It is widely used in research and teaching across fields including medicine, biology, and chemistry.
Detail
光学系统Optical system three-mirror eyepiece, 30° tilt, pupil distance adjustment, 46-78 mm 放大倍数Magnification 40X-1600X
目镜Eyepiece lens wide field of view objective lens WF10X 物镜Objective lens achromatic objective lens 4X,10X,20X,40X (bullet), 100X (bullet oil)
转换器Converter five-hole inward inclination converter 载物台Support table double-layer mechanical carrying table with low right hand, wear-resistant ceramic coated surface, moving range 76 mm x 55 mm
调焦机构Focus adjustment system coarse and fine adjustment is synchronous and adjustable, the minimum step precision of assistive fine adjustment can reach 1μm, the maximum travel is 25mm, with tension adjustment and anti-impact height limit device 聚光镜Spot lens coarse and fine adjustment is synchronous and adjustable, the minimum step precision of assistive fine adjustment can reach 1μm, the maximum travel is 25mm, with tension adjustment and anti-impact height limit device
光源Light source built-in SUPERMLEDTM daylight type simulated solar light LED lighting system 选配Optional WF10X/WF10X20 eyepiece
其他Other ECGO infinite distance bidirectional chromatic aberration correction optical system adjustable synchronous standard C por

The CX-33 infinity optical system biological microscope features high-quality optical components and advanced design, offering excellent imaging quality and flexibility. It is powerful, with superior image quality, easy to operate and maintain. This microscope is an ideal tool for various biological and medical applications, such as cell culture, histological analysis, and pathological testing. It is widely used in research and teaching across fields including medicine, biology, and chemistry.


1、Full metal structure, three-mirror eyepiece, 30° tilt, pupil distance adjustment, 46-78 mm;


2、Total magnification of microscope optics (eyepiece multiplied by objective lens):40X-1600X;


3、Eyepiece lens: pure optical glass lens, optical components are coated, wide field of view objective lens WF10X;


4、Objective lens: achromatic objective lens 4X,10X,20X,40X (bullet), 100X (bullet oil);


5、Converter: five-hole inward inclination converter;


6、Slicing clamp: slow rebound left-hand slicing clamp, supports a single slide, can drive cell counting pool, counting board and other heavy samples;


7、Carrying table: double-layer mechanical carrying table with low right hand, wear-resistant ceramic coated surface, moving range 76 mm x 55 mm;


8、Focusing system: coarse and fine adjustment is synchronous and adjustable, the minimum step precision of assistive fine adjustment can reach 1μm, the maximum travel is 25mm, with tension adjustment and anti-impact height limit device;


9、Colliminator: Kohler colliminator NA 0.1~1.1, supports bright field, polarization and other lighting modes;


10、Light source: built-in SUPERMLEDTM daylight type simulated solar light LED lighting system;


11、Camera interface: ECGO infinite distance bidirectional chromatic aberration correction optical system adjustable synchronous standard C port;


12、
Optional accessories: WF10X/WF10X20 eyepiece;
