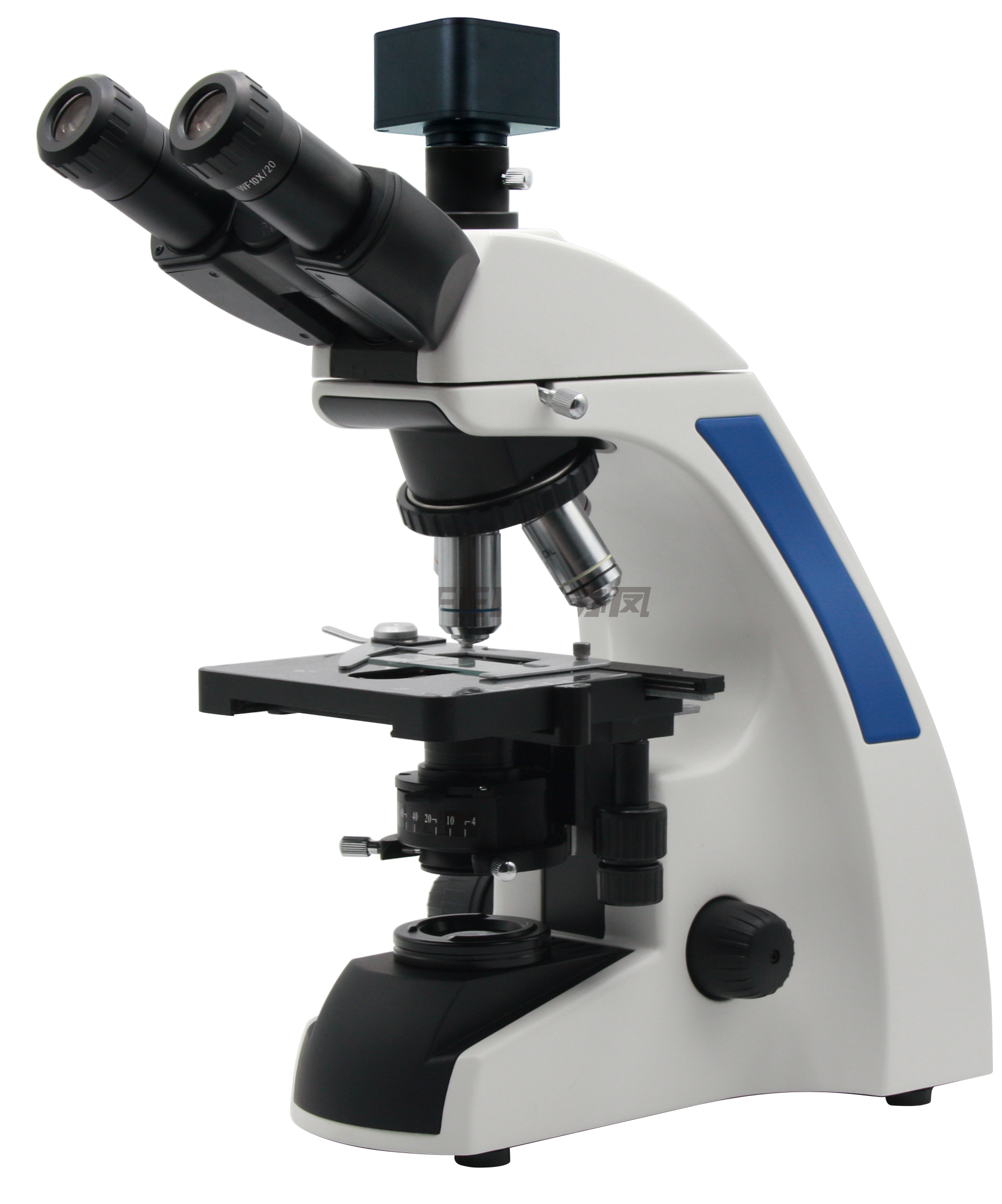

XSP-80 series biological microscopes, with excellent optical system design, classic shape, light and beautiful appearance, easy to observe and use, not easy to fatigue after long-term observation. Optical instruments that use magnification and illumination to improve the visibility of objects can be widely used in higher education institutions for biomedicine, clinical testing in healthcare systems, and observation and recording in research laboratories.
1、Full metal structure, hinged three eyed head, 45 degrees tilt, 360 degrees rotation, pupil distance adjustment 48mm-75mm;
2、Total magnification of microscope optics (eyepiece multiplied by objective lens): 40X-1600X;
3、Eyepiece lens: pure optical glass lens, optical components are coated. Optional large field of view WF10X, WF16X;
4、Objective lens: 195 series achromatic objective lens 4X,10X,40X (bullet), 100X (bullet oil);
5、Converter: four-hole inward inclined converter;
6、Focusing mechanism: coaxial coarse and fine focusing mechanism, fine adjustment grid value 0.002mm, coarse movement stroke per circle 37.7mm, fine movement stroke per circle 0.1mm, focusing range 24mm;
7、Carrying platform: double-layer mechanical moving platform size 142x132mm, moving range 75mmx50mm;
8、Spot lens: Abbe spot lens, N.A.=1.25, variable aperture;
9、
Light source: lighting system 3W/LED lighting;
10、

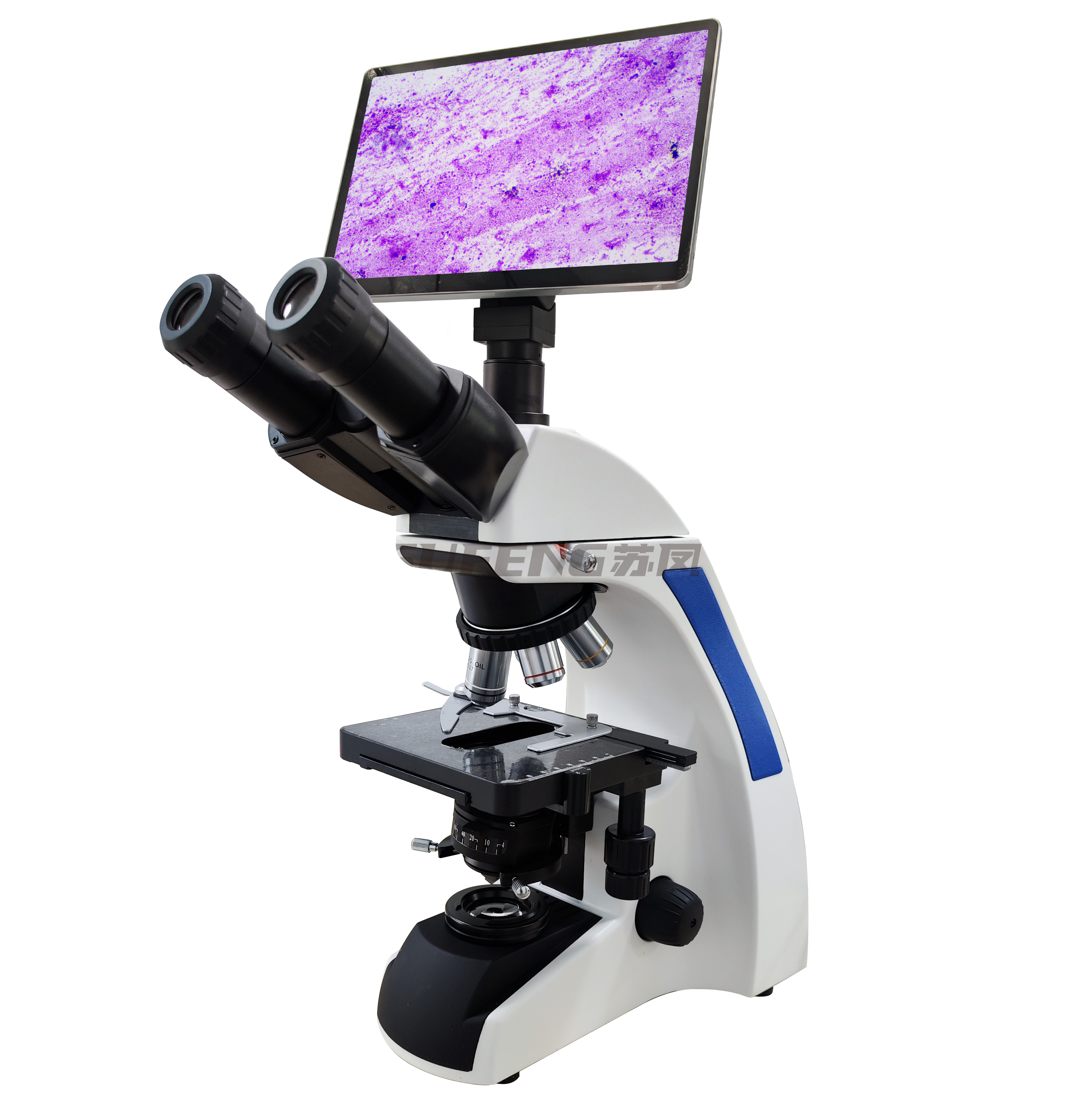

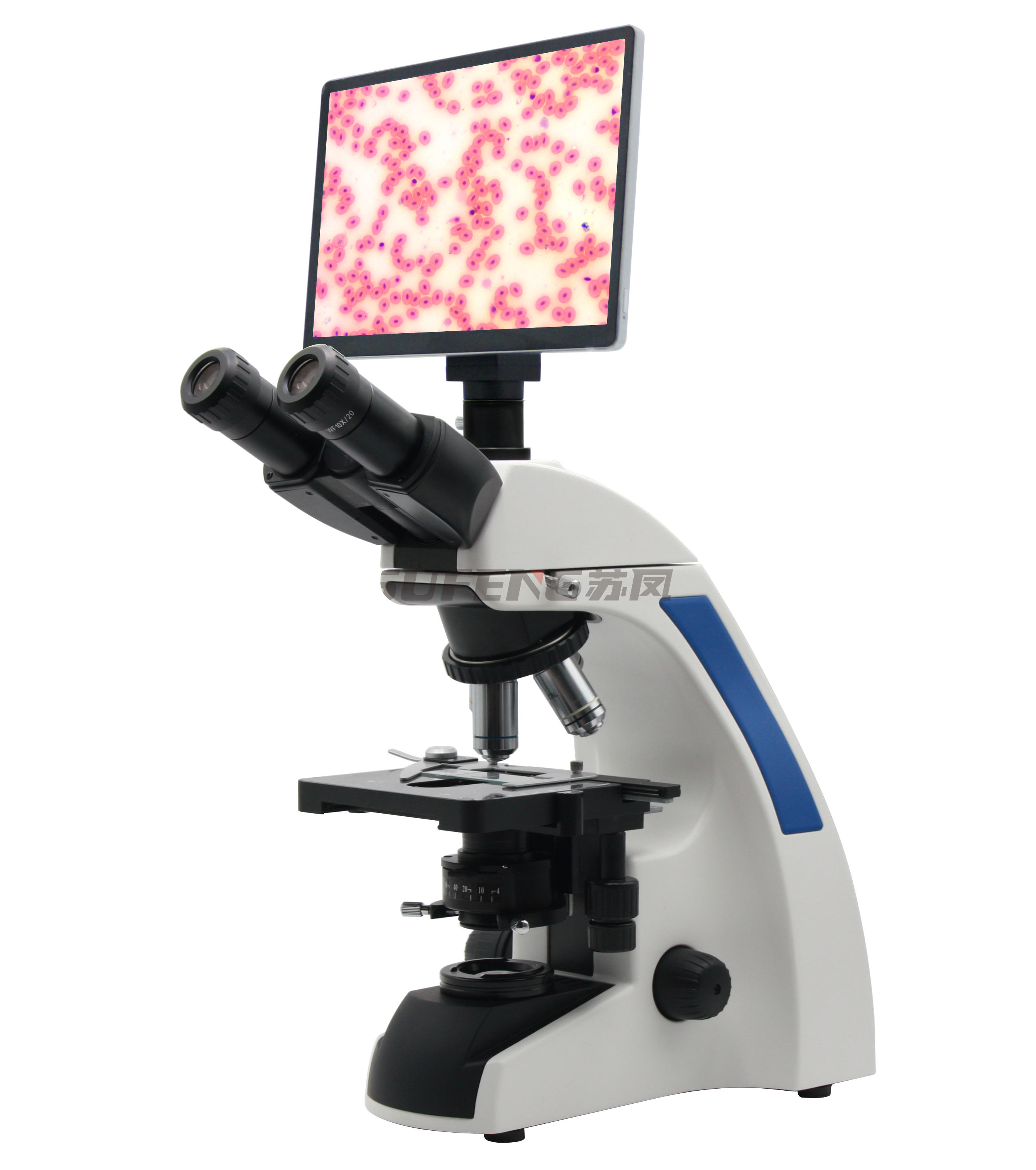

Optional accessories: C type interface 0.5X, camera, electronic eyepiece, etc.;
