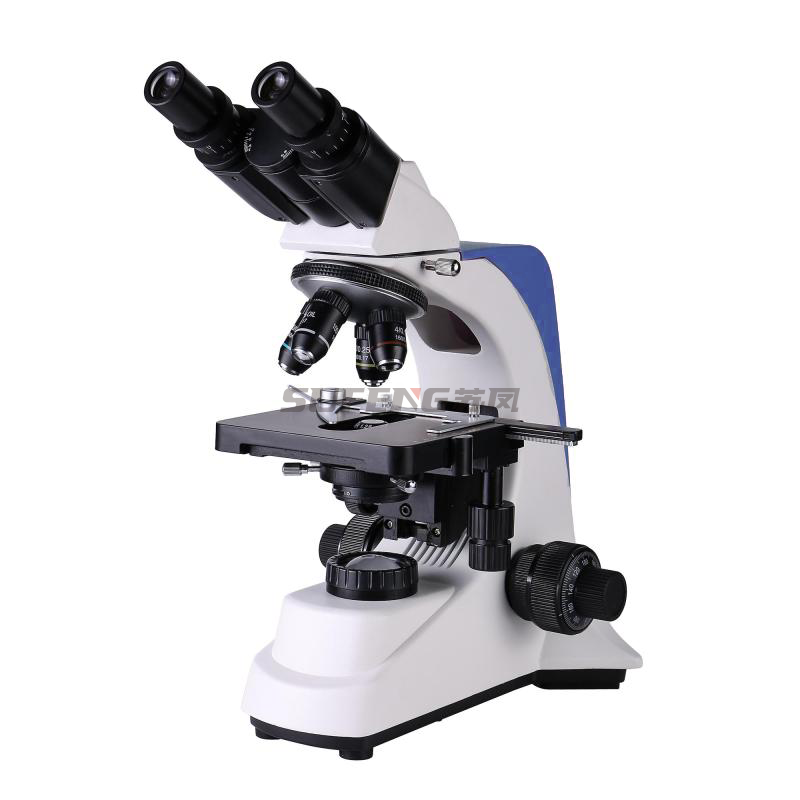

XSP-50 series biological microscope is a special microscope for biology and medical use, suitable for the field of microscopic measurement, available for health
It is used for biological, bacteriological observation, education and professional research in institutions, laboratories, research institutes and colleges and universities. This product is designed with advanced technology and novel shape, which adopts a variety of advanced structures and technologies, making the instrument convenient to use, safe and reliable.
1、Full metal structure, hinge type binocular head, 30 degrees tilt, pupil distance 48mm-75mm;
2、Total magnification of microscope optics (eyepiece multiplied by objective lens):40X-1600X;
3、Eyepiece lens: pure optical glass lens, optical components are coated. Compatible with WF10X, WF16X;
4、Objective lens: 195 series achromatic objective lens 4X,10X,40X (bullet), 100X (bullet oil);
5、Converter: four-hole outward inclined converter;
6、Focusing mechanism: coaxial coarse and fine focusing mechanism, fine adjustment grid value 0.002mm, coarse movement stroke 36mm per circle;
7、Carrying platform: double-layer movable platform size 142x132mm, moving range 75mmx50mm;
8、Spot lens: Abbe spot lens NA1.25 with variable light bar;
9、
Light source: external lighting system 3W/LED lighting;
