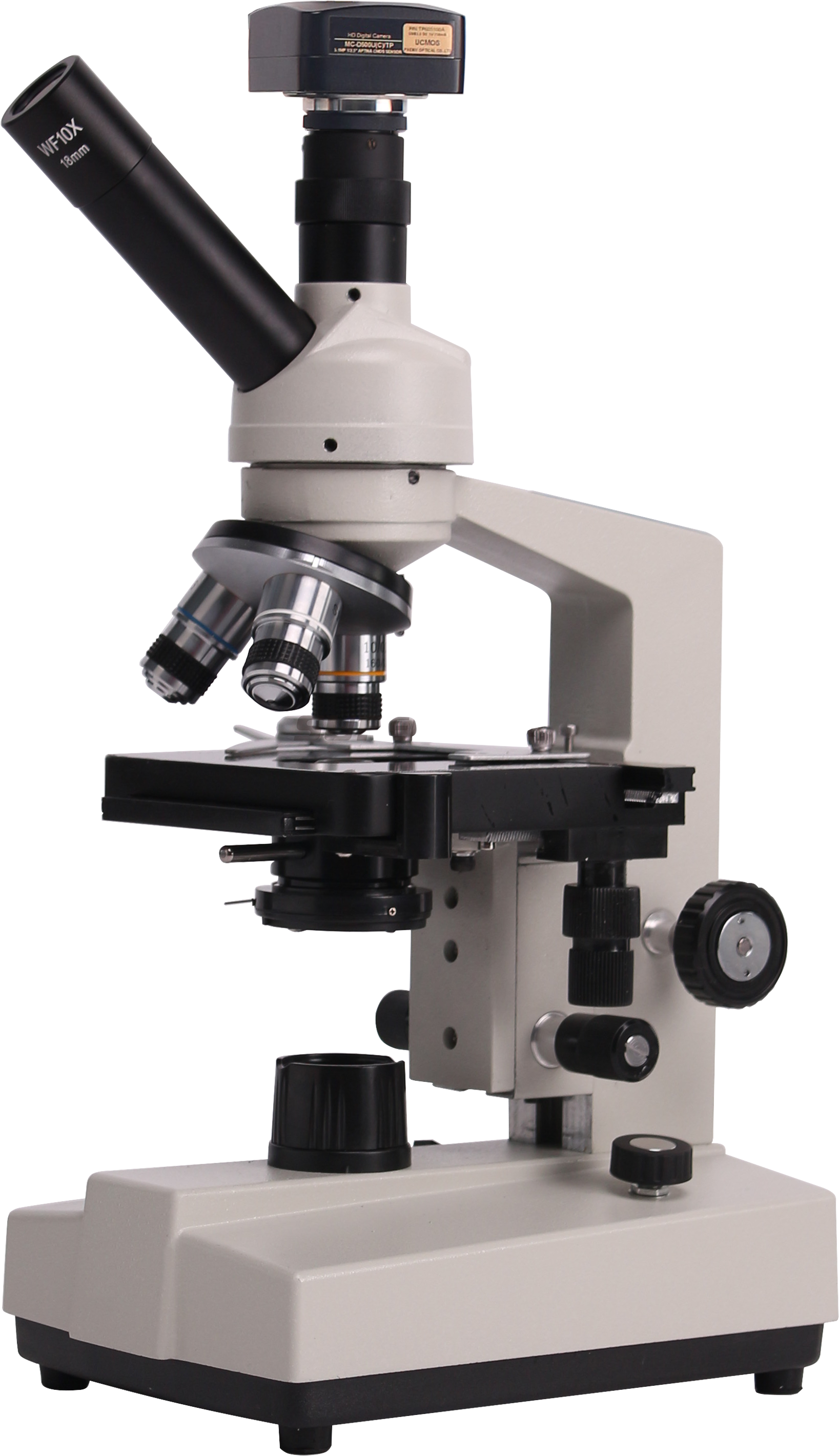

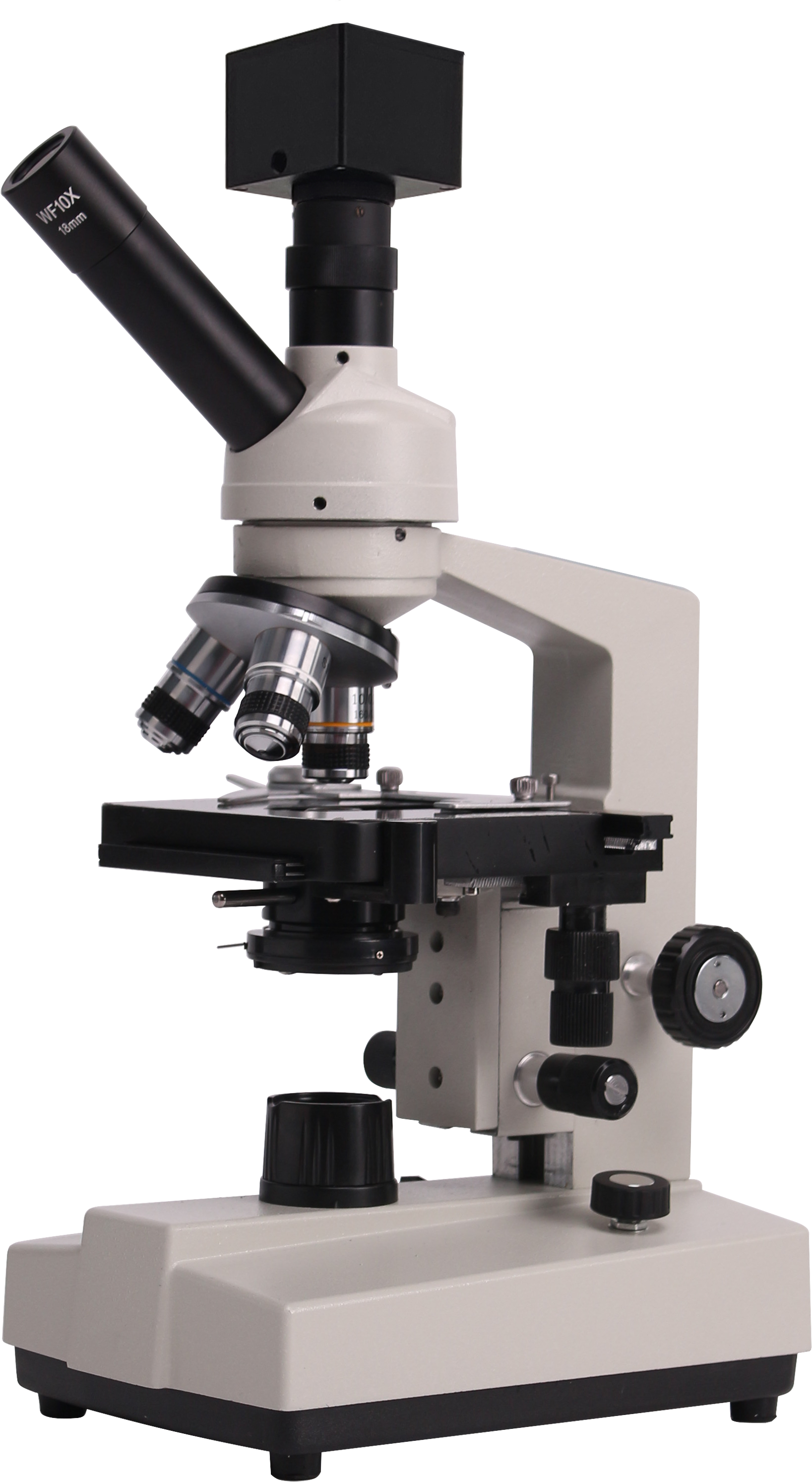

The XSP-30 series biological microscope features a modular design with flexible assembly. The optical system is excellently designed, with all optical components coated for clear and sharp imaging. All major parts of the instrument are made of metal and precision-machined, making it a highly cost-effective microscope. This instrument is suitable for use in secondary schools, colleges, medical institutions, inspection and quarantine departments, as well as clinical laboratories.
1、Full metal structure, single vision TV, 45° tilt, 360° rotation;
2、Total magnification of microscope optics (eyepiece multiplied by objective lens): 40X-1600X;
3、Eyepiece lens: standard WF10X, optional Huiheng H12.5X, H16X;
4、Objective lens: can be freely selected to combine achromatic objective lens 4X,10X,40X (bullet), 100X (bullet oil);
5、Converter: standard three-hole converter, optional four-hole converter;
6、Focusing mechanism: metal rack and gear, coarse and fine adjustment are different from the axis, coarse adjustment stroke: 22mm, fine adjustment stroke: 1.3mm;
7、Carrying platform: double-layer mechanical platform, size 115X125mm, moving range 76X52mm;
8、Spot lens: Abbe spot lens, NA=1.25, variable aperture, lever lift;
9、Light source: high brightness LED cold light source, the brightness can be adjusted;
10、Battery: built-in 18650 rechargeable lithium battery (1600mAH);
11、Power supply: external switch regulated power supply (adapter), input AC 100-240V, output DC 5V/2A;
