| 光学系统Optical system | single vision lens barrel | 放大倍数Magnification | 40X-1600X |
| 目镜Eyepiece lens | Compatible with WF10X, WF16X | 物镜Objective lens | can be freely selected to combine achromatic objective lens 4X,10X,40X (bullet), 100X (bullet oil) |
| 转换器Converter | four-hole converter | 载物台Support table | double-layer mobile mechanical platform, size 95mmx105mm, moving range 60mmx30mm |
| 调焦机构Focus adjustment system | metal rack and gear, stable and durable, coarse and fine coaxial focusing mechanism, focusing range 20mm | 光源Light source | upper and lower LED lighting, external adapter |

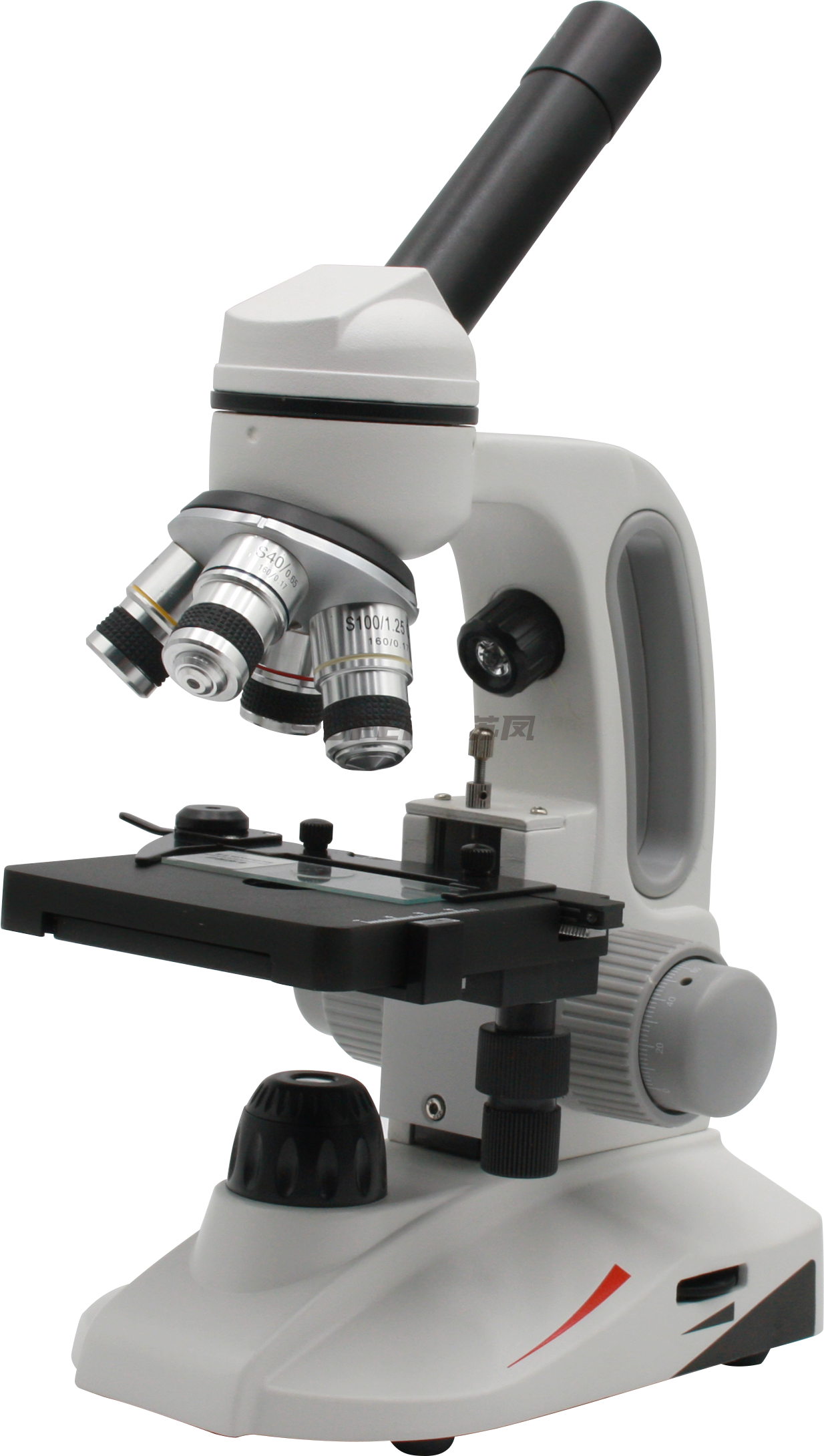

The XSP-20 series biological microscope boasts superior optical performance, including high clarity and high contrast. It is specifically designed for educational use in biomedical colleges and laboratories. With ergonomic design, it offers a more comfortable and convenient experience. Its excellent optical performance will provide you with a visually stunning view that exceeds your expectations.
1、Full metal structure, single vision lens barrel;
2、Total magnification of microscope optics (eyepiece multiplied by objective lens): 40X-1600X;
3、Eyepiece lens: pure optical glass lens, optical components are coated. Compatible with WF10X, WF16X;
4、Objective lens: can be freely selected to combine achromatic objective lens 4X,10X,40X (bullet), 100X (bullet oil);
5、Converter: four-hole converter;
6、Focusing mechanism: metal rack and gear, stable and durable, coarse and fine coaxial focusing mechanism, focusing range 20mm;
7、Carrying platform: double-layer mobile mechanical platform, size 95mmx105mm, moving range 60mmx30mm;
8、
Light source: upper and lower LED lighting, external adapter;
