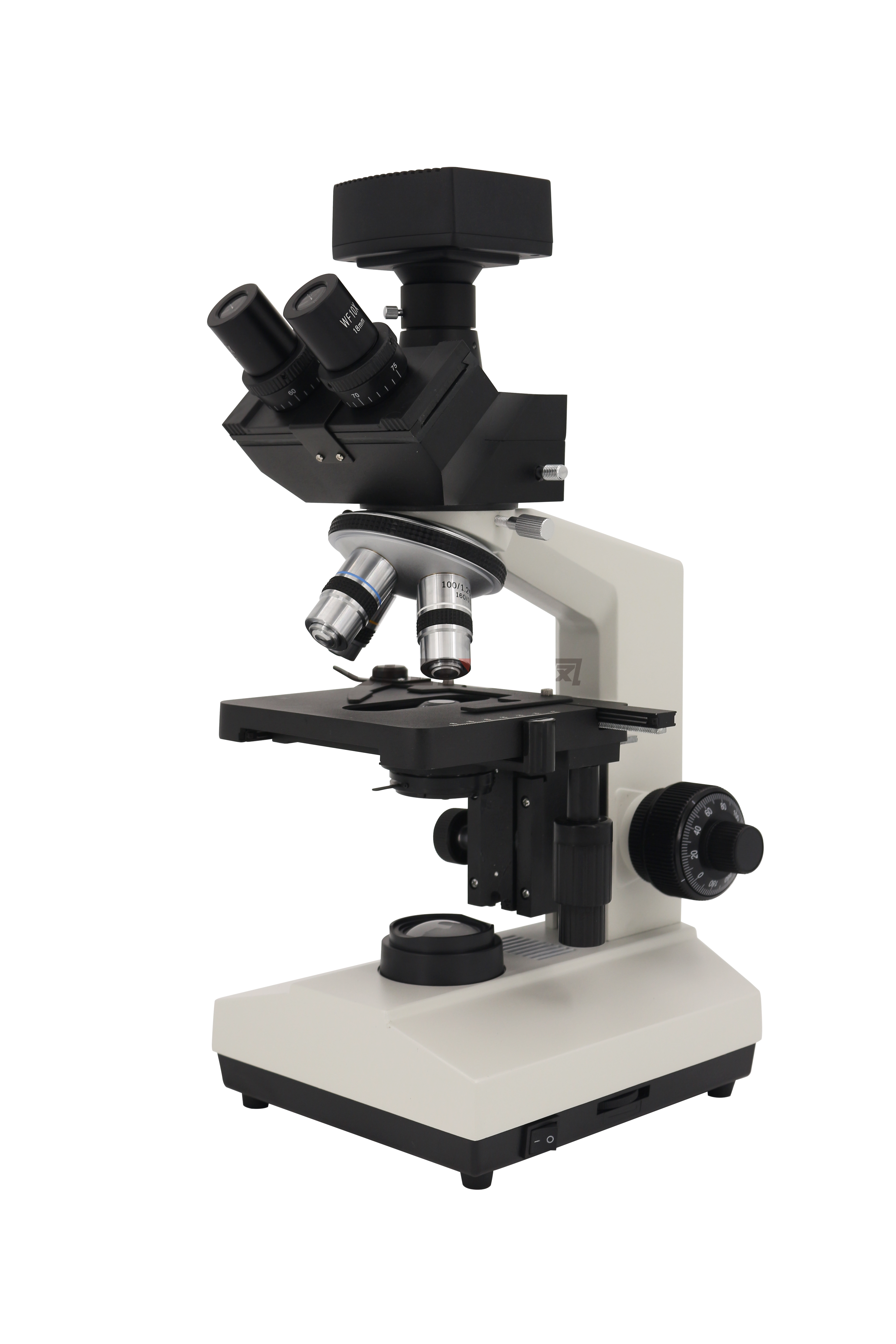

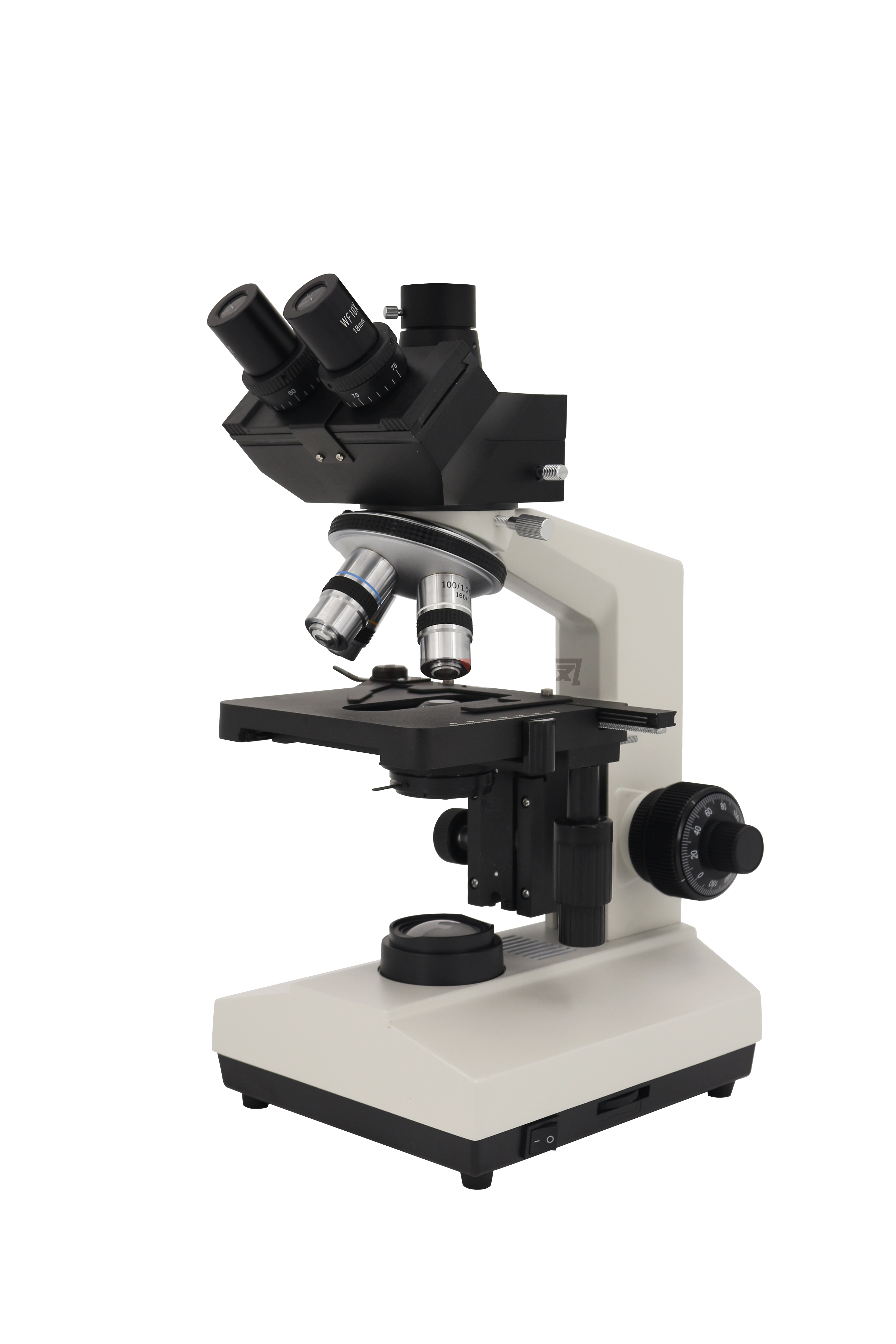

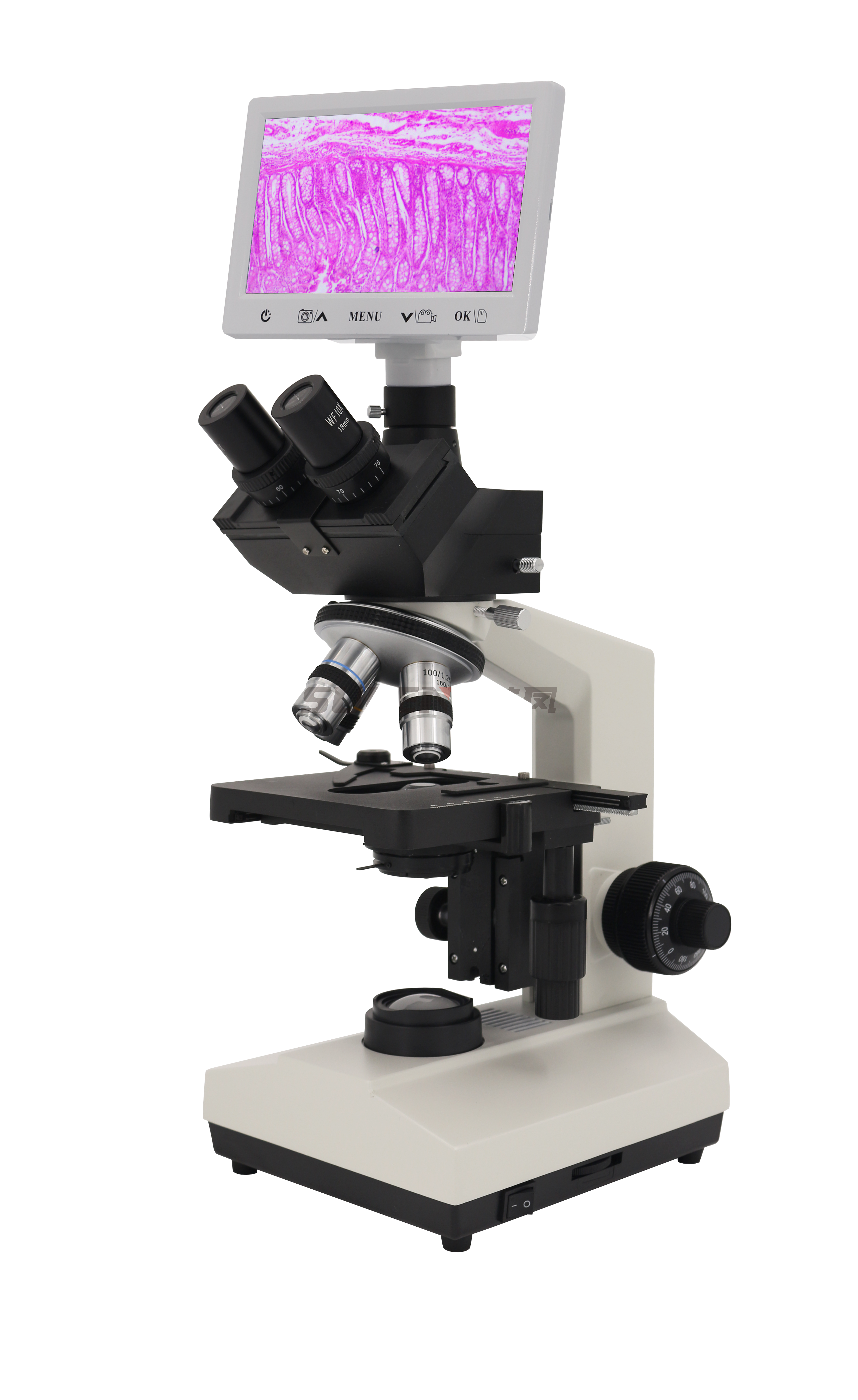

The XSP-10 series biological microscope features ergonomic design, with smooth lines and an attractive appearance. It upgrades traditional optical imaging solutions available on the market. The all-copper body is waterproof and dustproof, ensuring durability. Better material results in superior clarity. It can be used for water quality testing, fish disease detection, sperm analysis, skin examination, and pharmaceutical biochemical experiments.
1、Full metal structure,three eyes, 45° cutting, 360° rotation, pupil spacing 54-75mm;
2、Total magnification of microscope optics (eyepiece multiplied by objective lens): 40X-1600X;
3、Eyepiece lens: pure optical glass lens, optical components are coated. Compatible with WF10X, WF16X;
4、Objective lens: can be freely selected to combine achromatic objective lens 4X,10X,40X (bullet), 100X (bullet oil);
5、Converter: four-hole outward inclined converter;
6、Focusing mechanism: metal rack and gear, stable and durable, coarse and fine adjustment coaxial focusing system, with locking device;
7、Carrying platform: double-layer mobile mechanical platform, size 95mmx105mm, moving range 60mmx30mm;
8、Focus lens: Abbe focus lens, aperture can be adjusted, can move up and down;
9、
Light source: LED lighting, external adapter;
