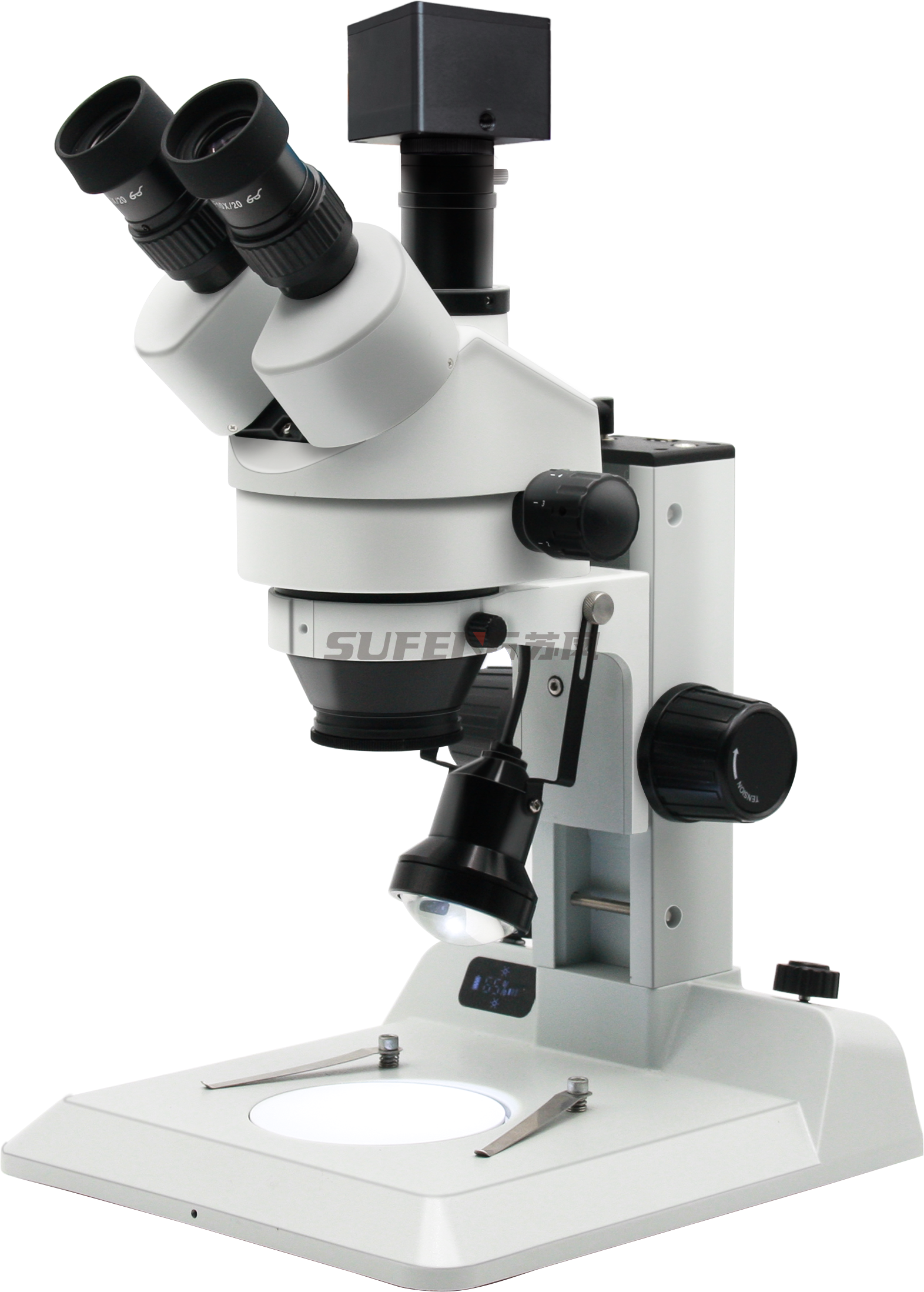

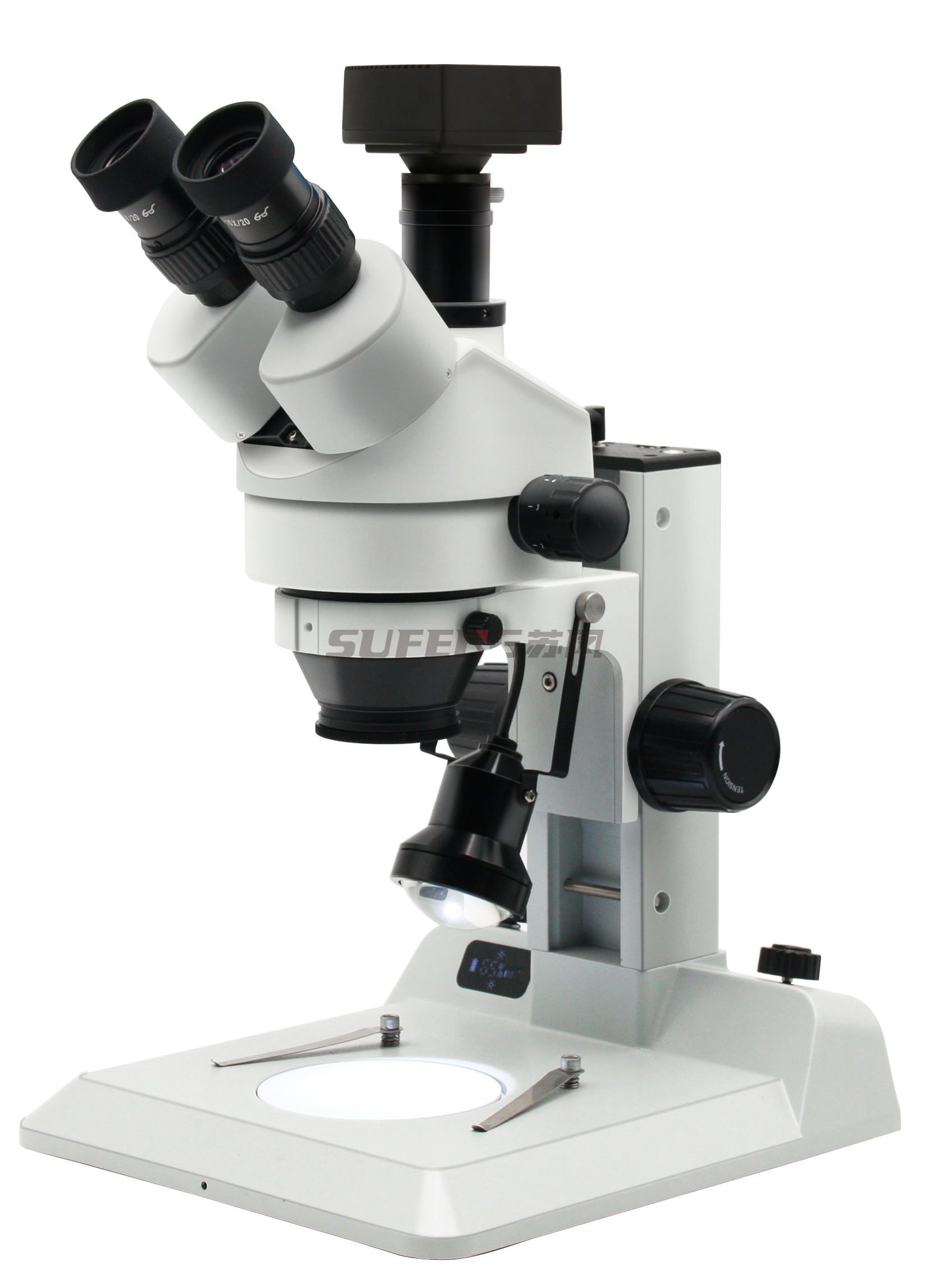

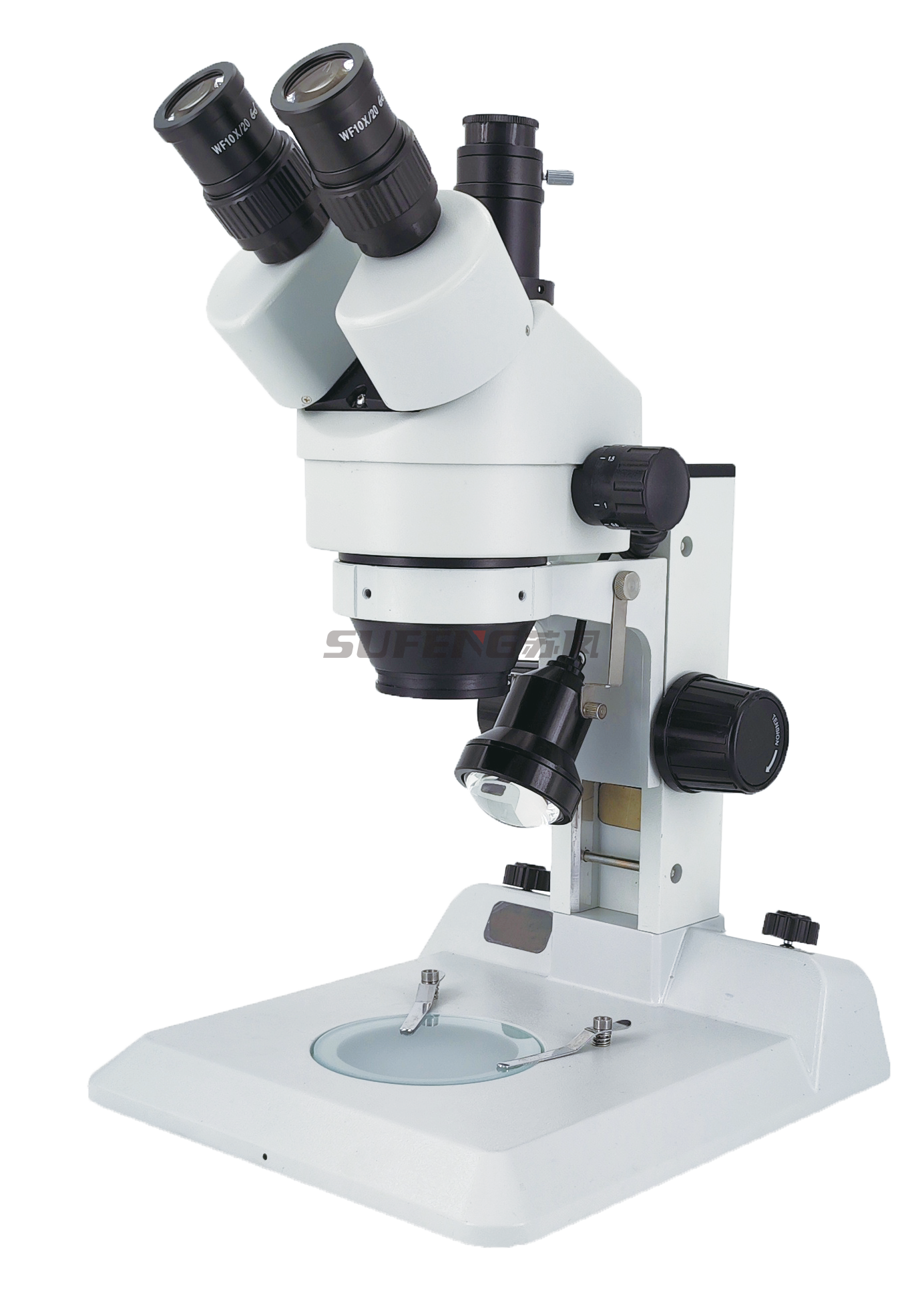

The SMZ-165 series continuous zoom stereomicroscope features an upgraded large base design with multiple mounting options available. It offers a continuous magnification ratio of 1:6.5, high eye point for wide field of view eyepiece, ergonomic design, and a 45° viewing angle, making it less prone to fatigue during prolonged use. The dual-handwheel horizontal zoom mechanism ensures more stable and comfortable operation. It can be widely applied in various industries and fields such as mechanical electronics, industrial inspection, instrumentation, and jewelry testing.
1、Full metal structure, three hinges, 45° tilt, pupil spacing: 55-75mm;
2、Total magnification of microscope optics (eyepiece multiplied by objective lens): 7X-45X;
3、Eyepiece lens: pure optical glass lens, optical components are coated. High eye point, wide Angle objective lens WF10X;
4、Objective lens: continuous zoom objective lens, 0.7X-4.5X;
5、Vision adjustment: binocular vision adjustment range ±6;
6、Focusing mechanism: coarse adjustment range 100mm;
7、Field of view diameter: Φ5mm-Φ30mm;
8、Working distance: 30mm-160mm;
9、Elevation range: 60-165mm;
10、Light source: upper and lower light source, 3W/LED, brightness adjustable;
11、

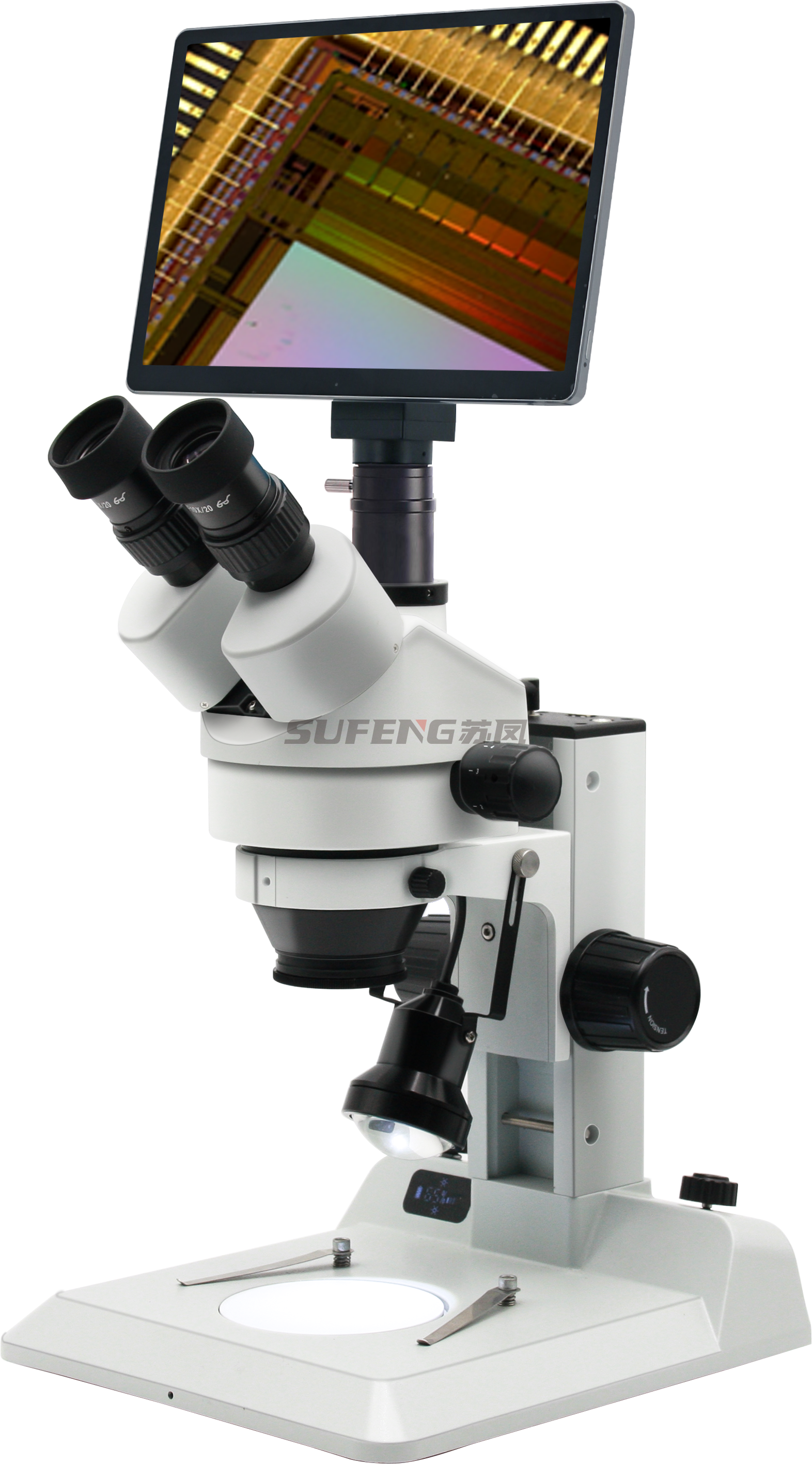

Optional accessories: high eye point wide Angle eyepiece, WF15X/WF20X; tablet (9 inch 5 megapixel);
