| 光学系统Optical system | binocular observation head, pupil spacing 52-75mm | 放大倍数Magnification | 8X-50X |
| 目镜Eyepiece lens | High eye point, wide Angle, large field of view objective lens WF10X | 物镜Objective lens | continuous zoom objective lens 0.8X-5X, magnification ratio: 6.3:1 |
| 载物台Support table | Φ125 frosted glass, and black and white carrying plate | 调焦机构Focus adjustment system | coarse adjustment range 60mm |
| 视度调节Vision adjustment | binocular vision adjustment range ±6 | 视场直径Field of view diameter | Φ5mm-Φ30mm |
| 工作距离Working distance | 45mm-220mm | 光源Light source | upper and lower light source, 3W/LED, brightness adjustable |
| 选配Optional | wide Angle eyepiece WF20X | | |

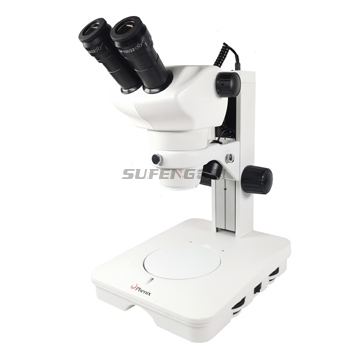

The SMZ-168 series continuous zoom stereomicroscope features a standardized tube design. The new design enhances the quality of the third tube image, and the magnification can be selected based on the size of the camera chip used. The continuous zoom ratio is 1:6.3, with a wide field of view eyepiece, offering an enlargement range from 8X to 50X. The range can also be extended through auxiliary eyepieces and objective lenses.
1、Full metal structure, binocular observation head, pupil spacing 52-75mm;
2、Total magnification of microscope optics (eyepiece multiplied by objective lens): 8X-50X;
3、Eyepiece lens: pure optical glass lens, optical components are coated. High eye point, wide Angle, large field of view objective lens WF10X;
4、Objective lens: continuous zoom objective lens 0.8X-5X, magnification ratio: 6.3:1;
5、Vision adjustment: binocular vision adjustment range ±6;
6、Focusing mechanism: coarse adjustment range 60mm;
7、Field of view diameter: Φ5mm-Φ30mm;
8、Working distance: 45mm-220mm;
9、Light source: upper and lower light source, 3W/LED, brightness adjustable;
10、Carrying table: Φ125 frosted glass, and black and white carrying plate;
11、
Optional accessories: wide Angle eyepiece WF20X;
