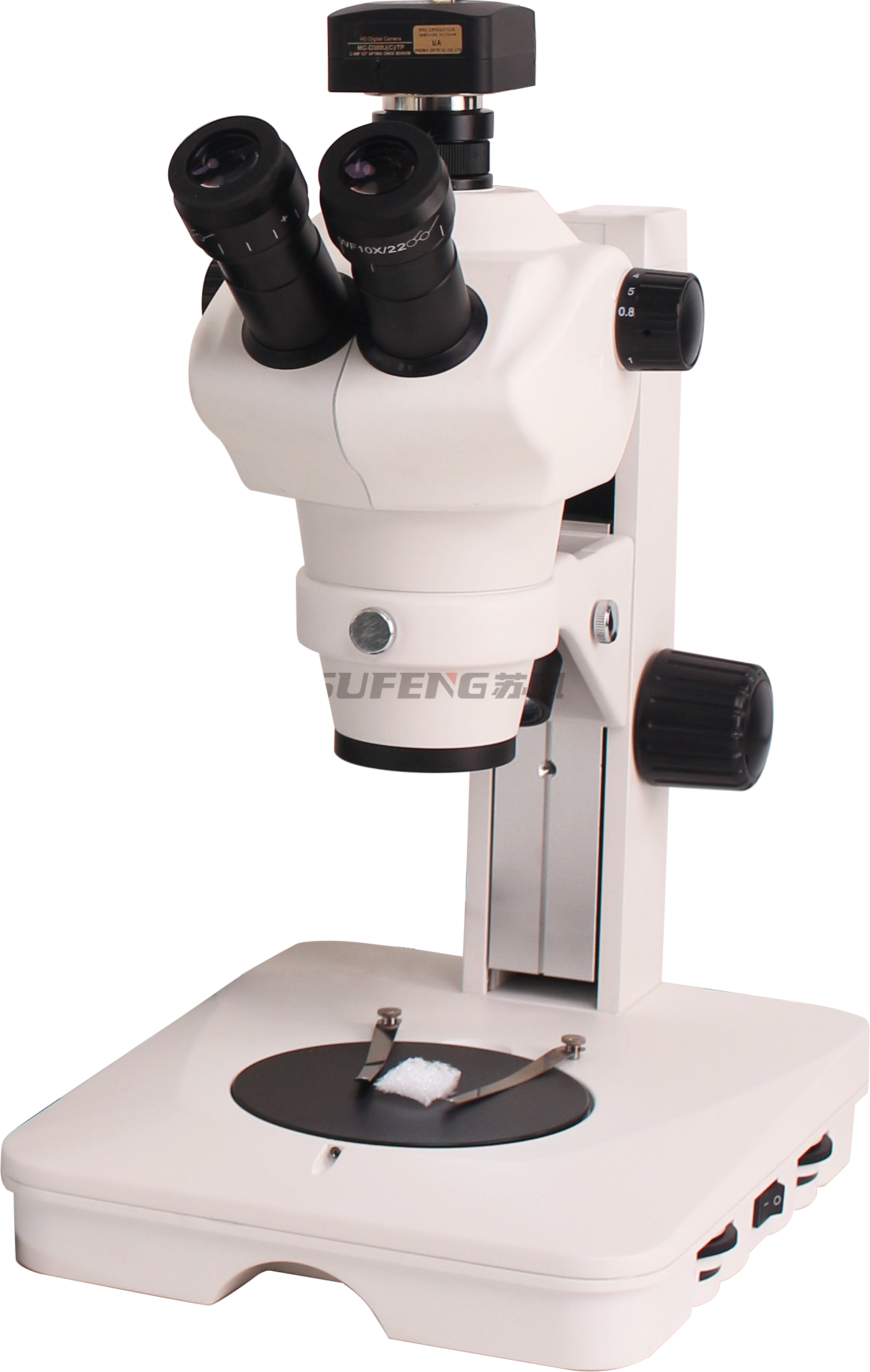

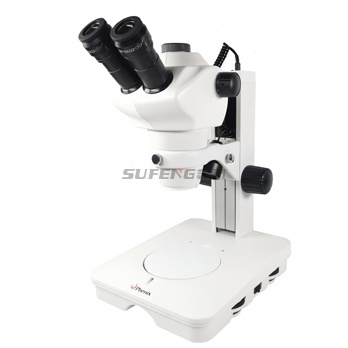

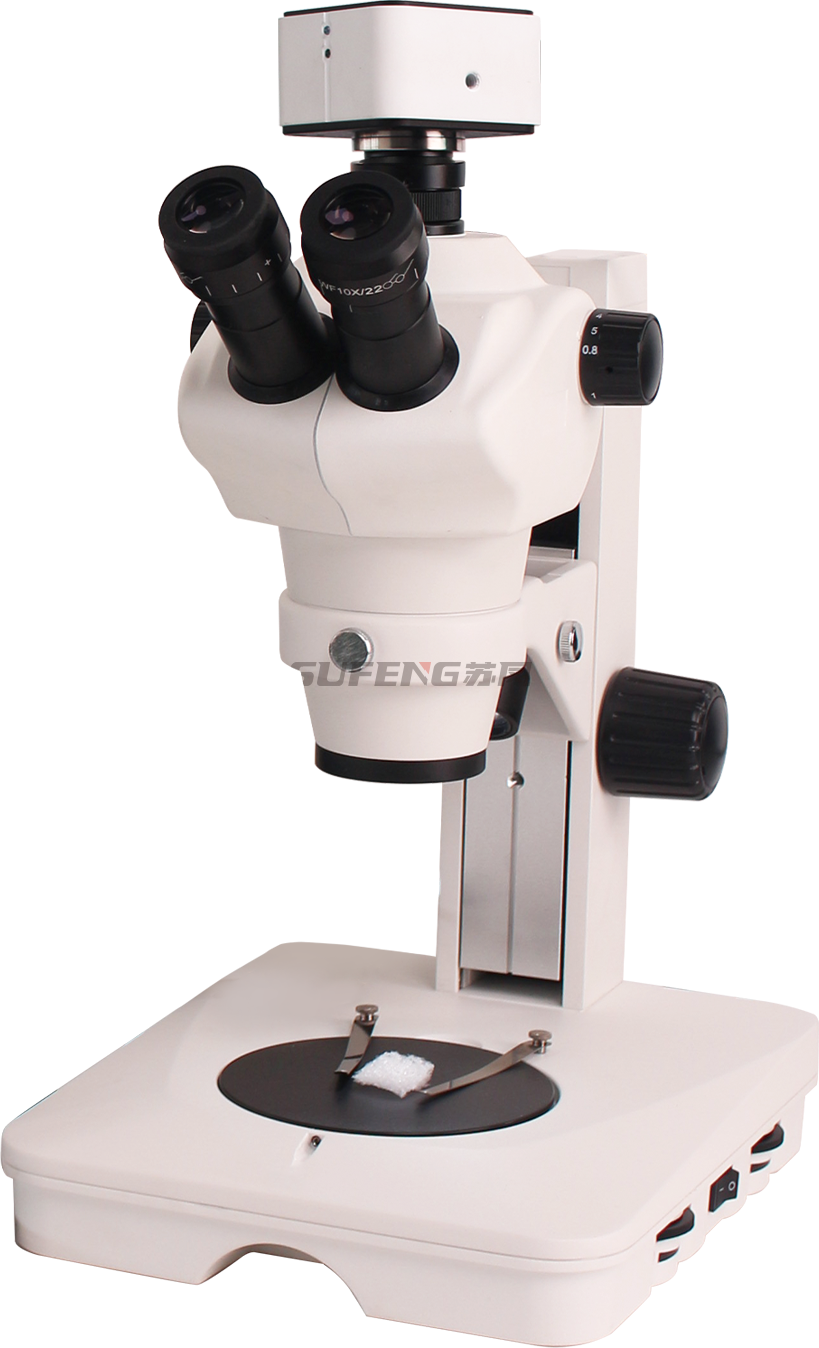

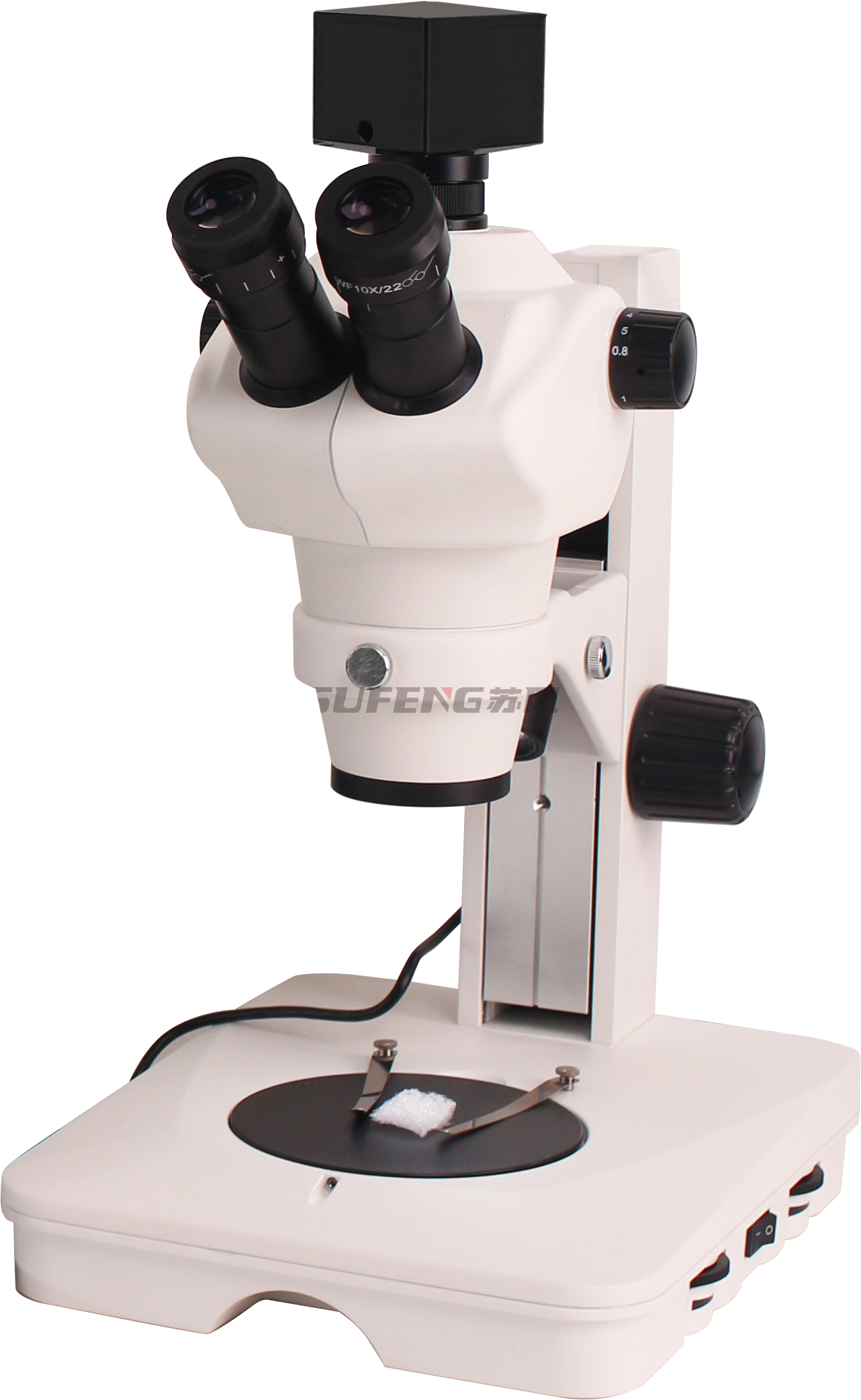

The SMZ-168 series continuous zoom stereomicroscope features a standardized tube design. The new design enhances the quality of the third tube image, and the magnification can be selected based on the size of the camera chip used. The continuous zoom ratio is 1:6.3, with a wide field of view eyepiece, offering an enlargement range from 8X to 50X. The range can also be extended through auxiliary eyepieces and objective lenses.
1、Full metal structure, three-mirror observation barrel, pupil spacing 52-75mm;
2、Total magnification of microscope optics (eyepiece multiplied by objective lens): 8X-50X;
3、Eyepiece lens: pure optical glass lens, optical components are coated. High eye point, wide Angle, large field of view objective lens WF10X;
4、Objective lens: continuous zoom objective lens 0.8X-5X, magnification ratio: 6.3:1;
5、Vision adjustment: binocular vision adjustment range ±6;
6、Focusing mechanism: coarse adjustment range 60mm;
7、Field of view diameter: Φ5mm-Φ30mm;
8、Working distance: 45mm-220mm;
9、Light source: upper and lower light source, 3W/LED, brightness adjustable;
10、Carrying table: Φ125 frosted glass, and black and white carrying plate;
11、

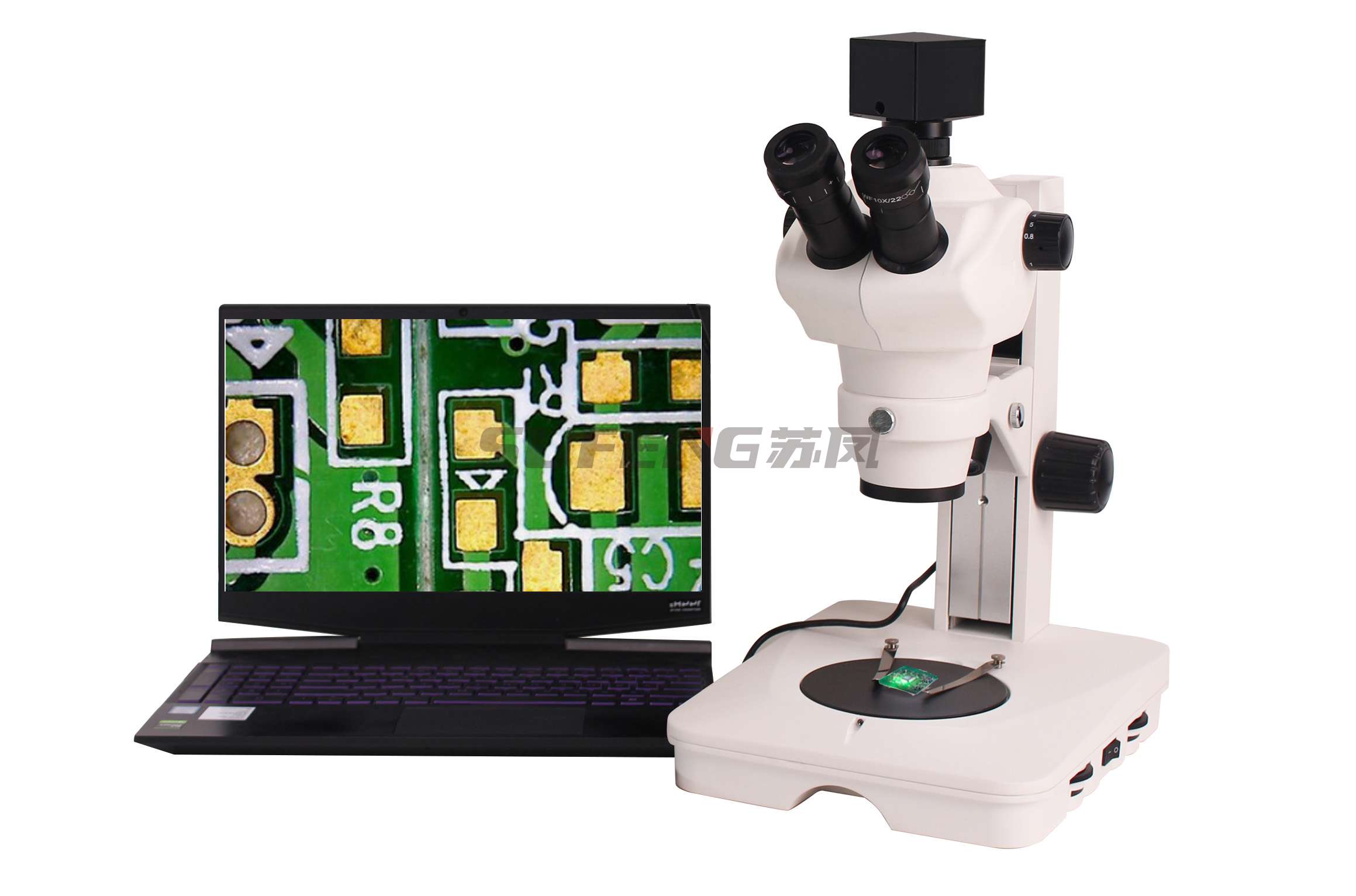

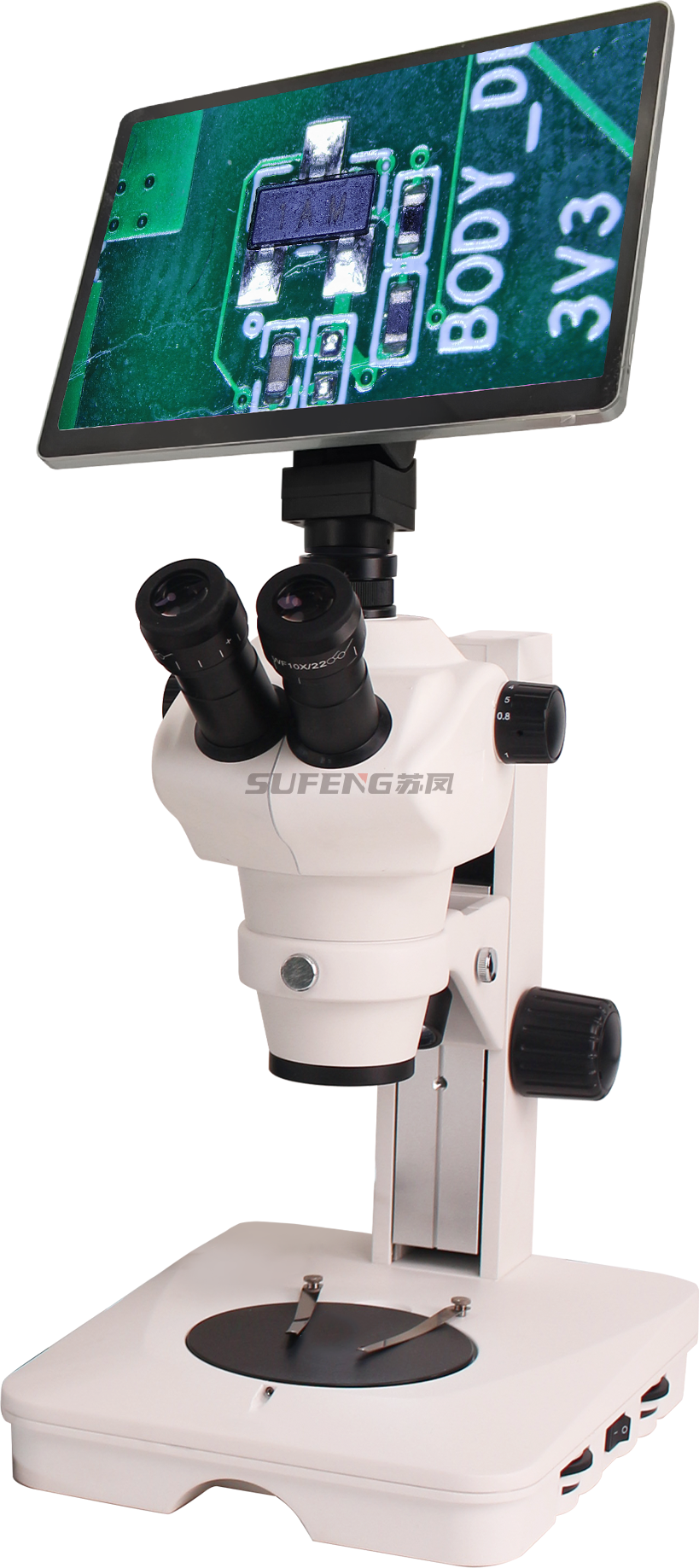

Optional accessories: wide Angle eyepiece WF20X,0.5x CTV, HDMI HD camera system, LCD digital integrated display;
