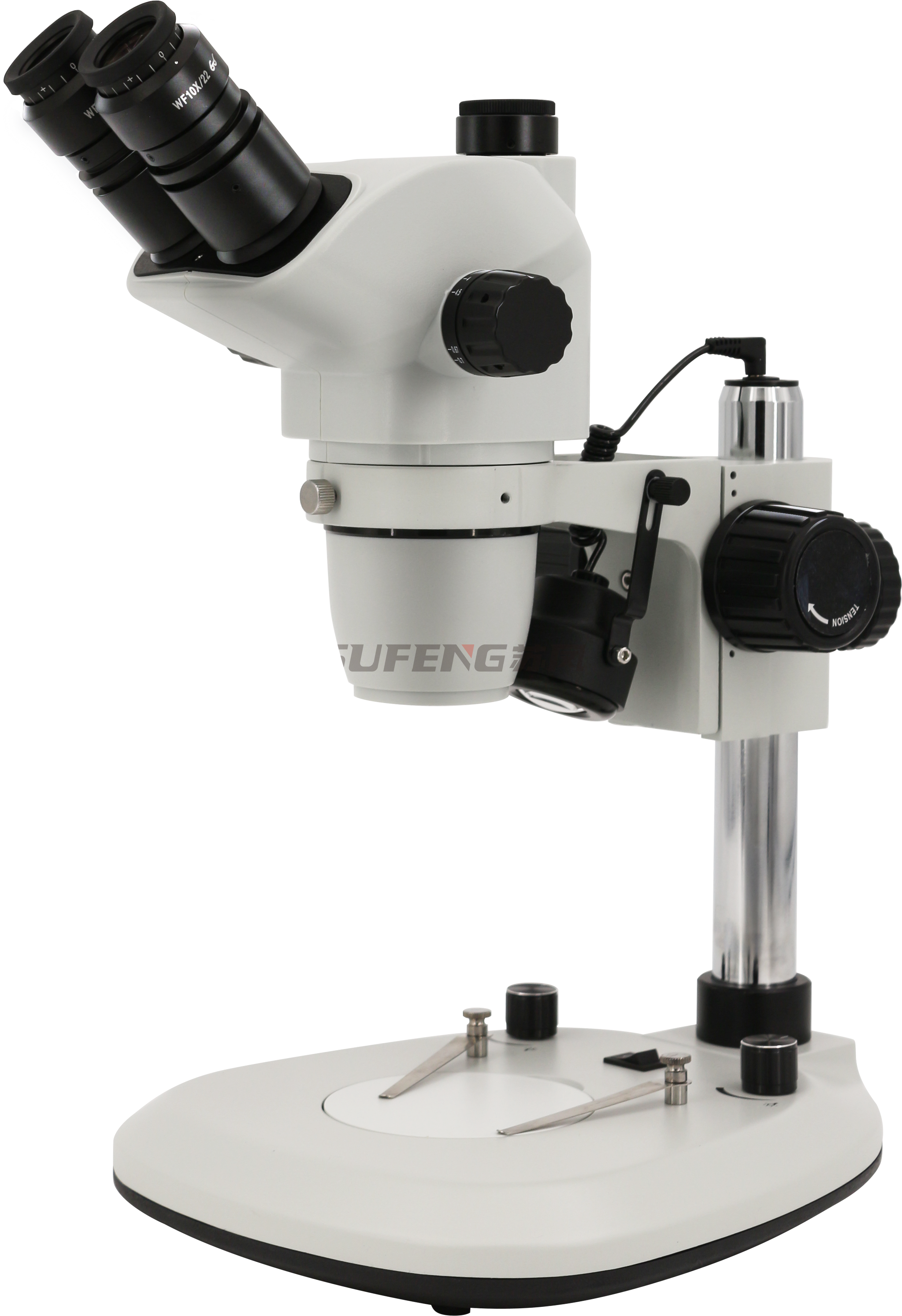

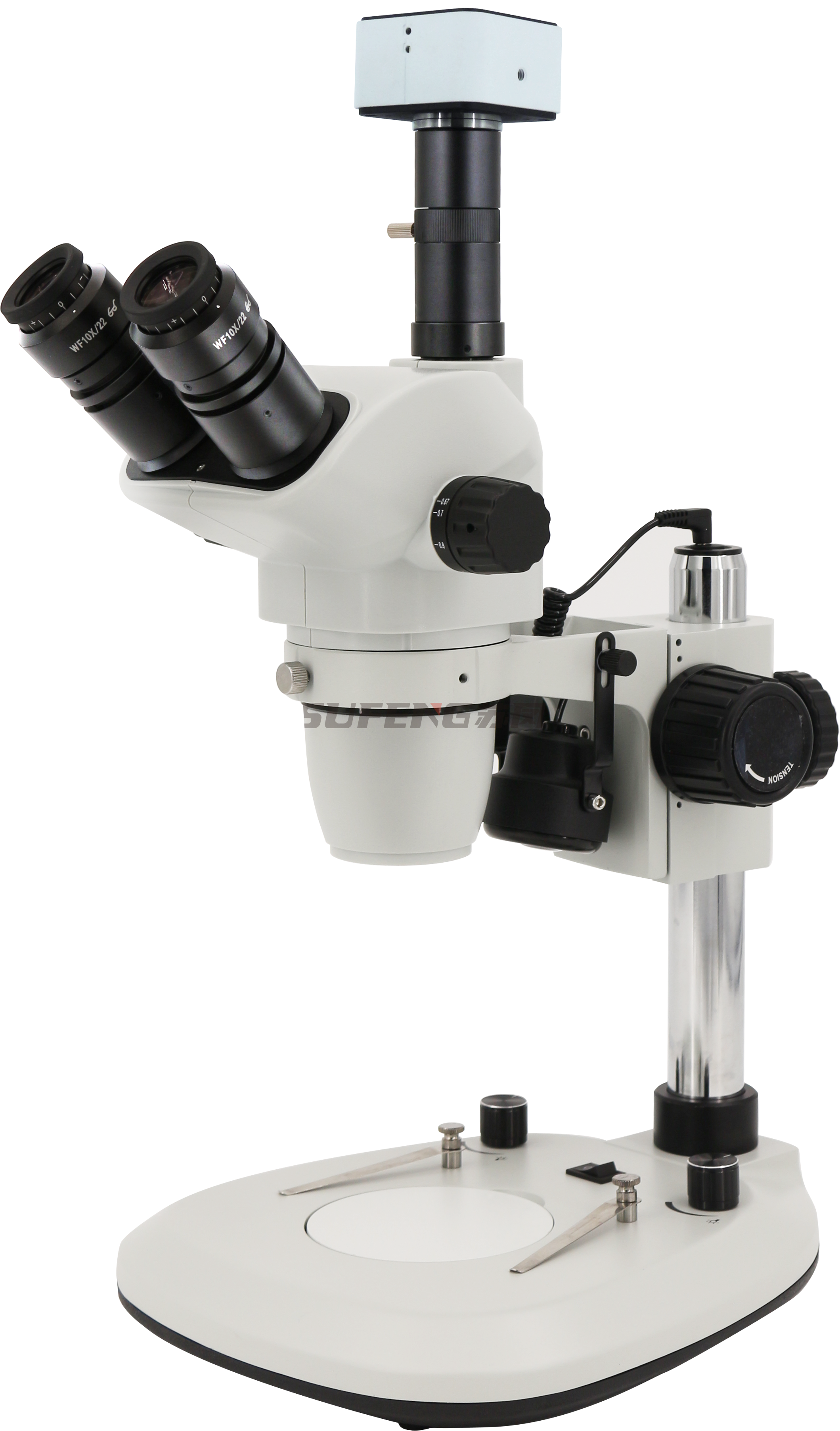

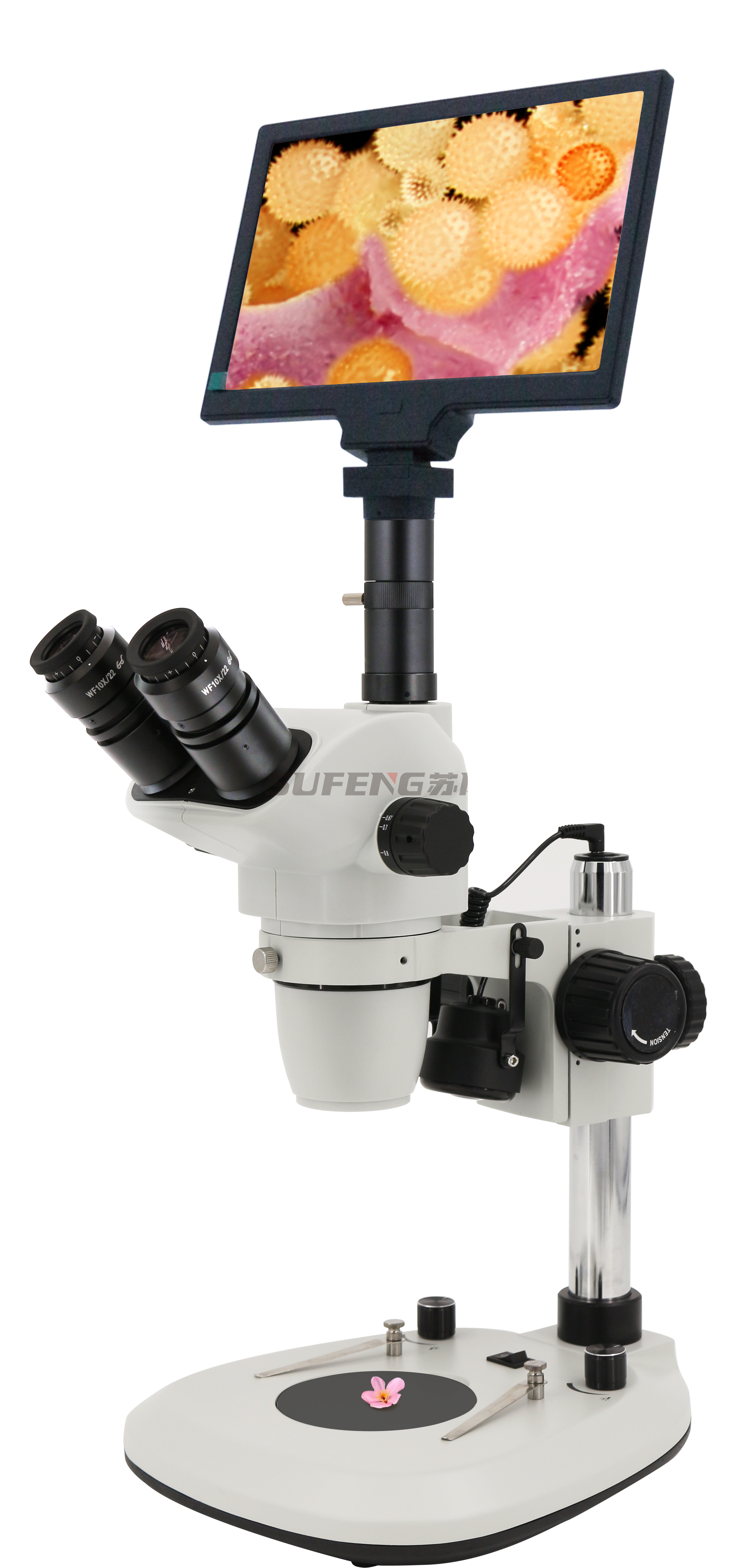

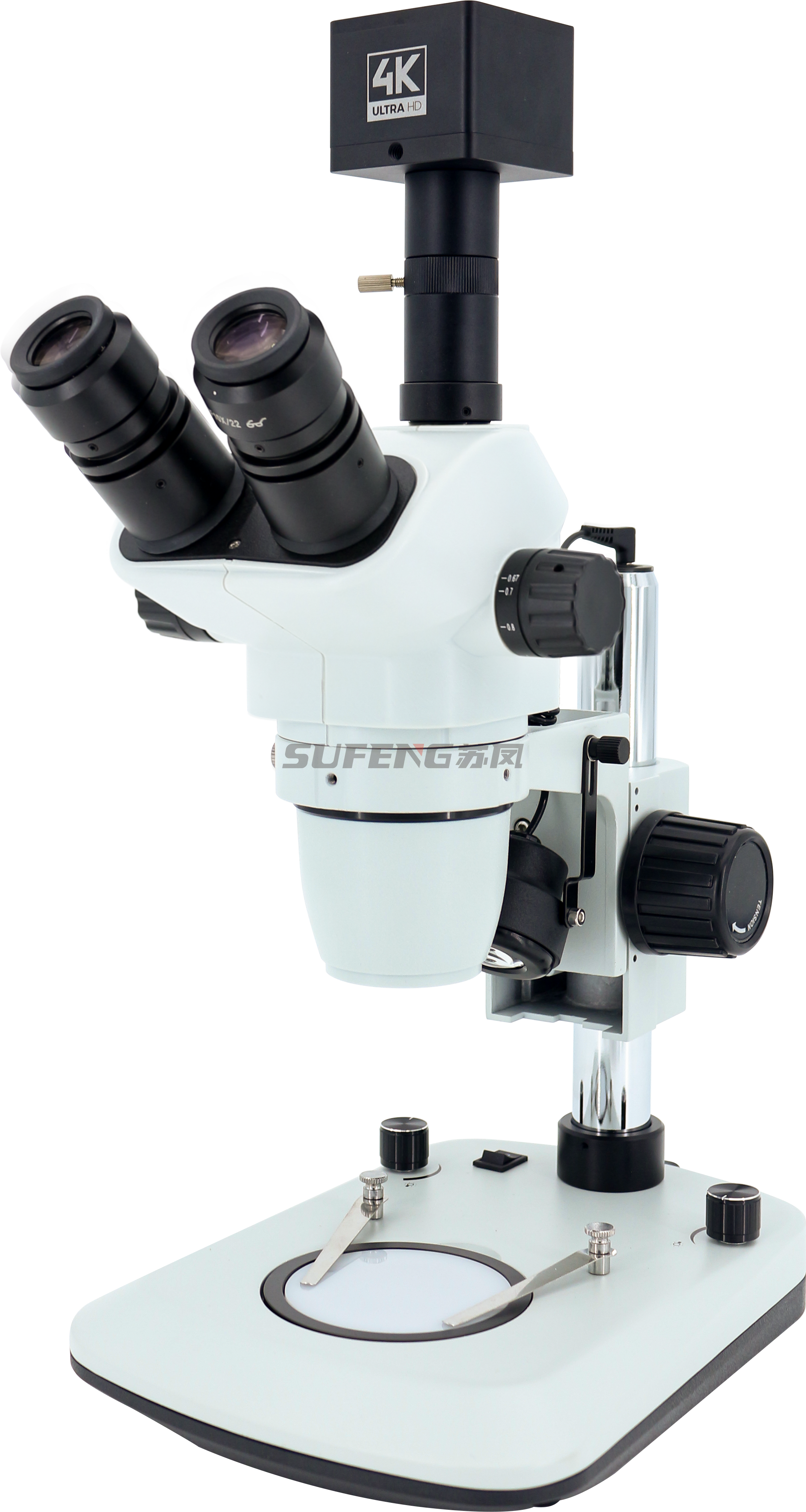

SMZ-170 series continuous zoom stereomicroscope, using WF10X super large field of view eyepiece, adjustable viewing, continuous zoom ratio 1:6.7, super long working distance, super large depth of field, clear imaging, wide field of view, is an ideal instrument for textile industry, agriculture and forestry, machinery and electronics and other industries and fields.
1、Full metal structure, hinge three eyes, 45° tilt, 360° rotation, pupil distance adjustment range 54-75mm;
2、Total magnification of microscope optics (eyepiece multiplied by objective lens): 6.7X-45X;
3、Eyepiece lens: pure optical glass lens, optical components are coated. High eye point, wide Angle objective lens WF10X;
4、Objective lens: continuous zoom objective lens, 0.67X-4.5X;
5、Vision adjustment: binocular vision adjustment range ±5;
6、Focusing mechanism: coarse adjustment range 50mm;
7、Field of view diameter: Φ4.9mm-Φ32mm;
8、Working distance: 105mm;
9、Light source: LED upper and lower light source, brightness adjustable;
10、
Optional accessories: Wide Angle eyepiece WF15X/WF20X,2X magnifying objective lens, 0.5X reducing objective lens, ring LED lamp;
