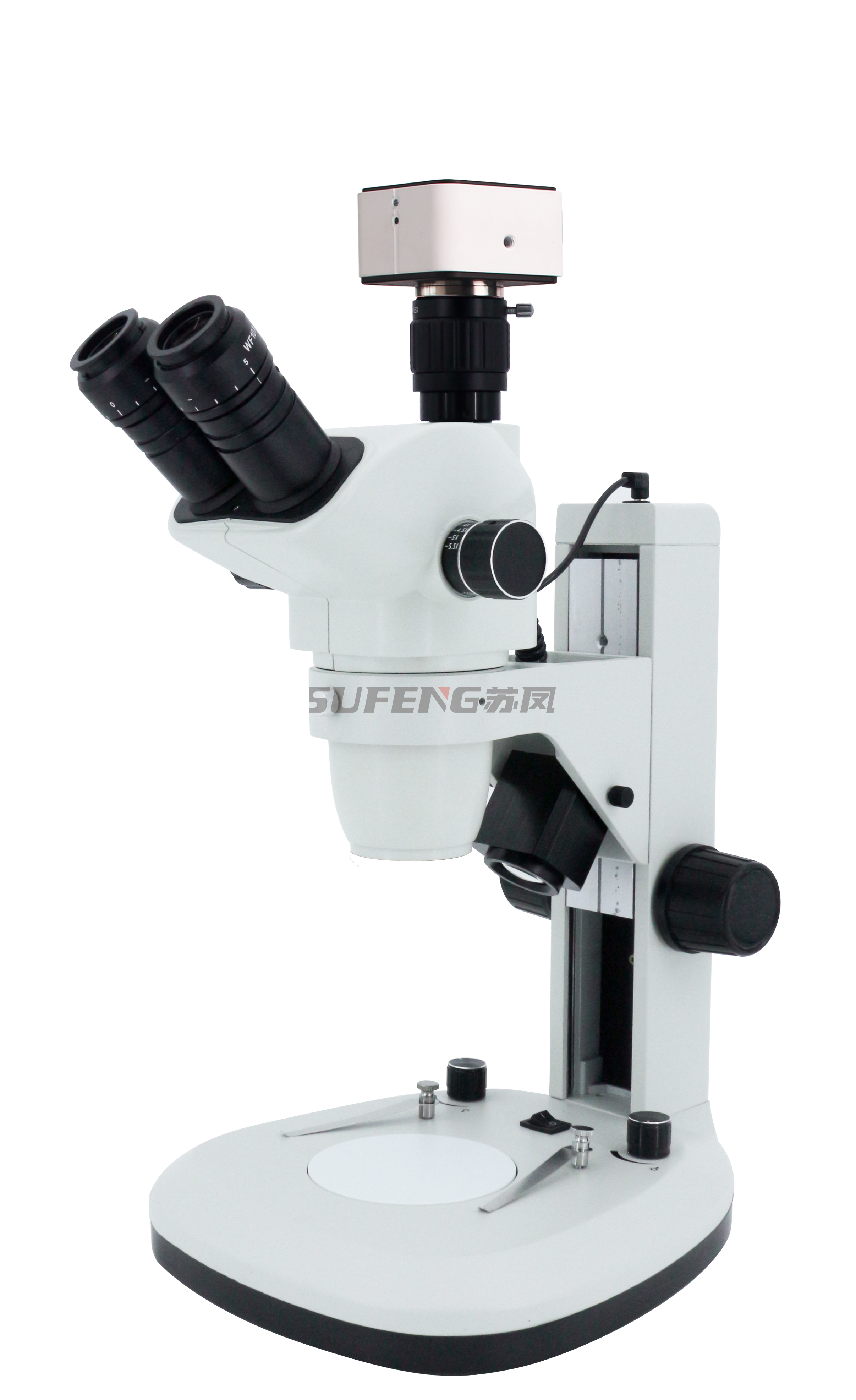

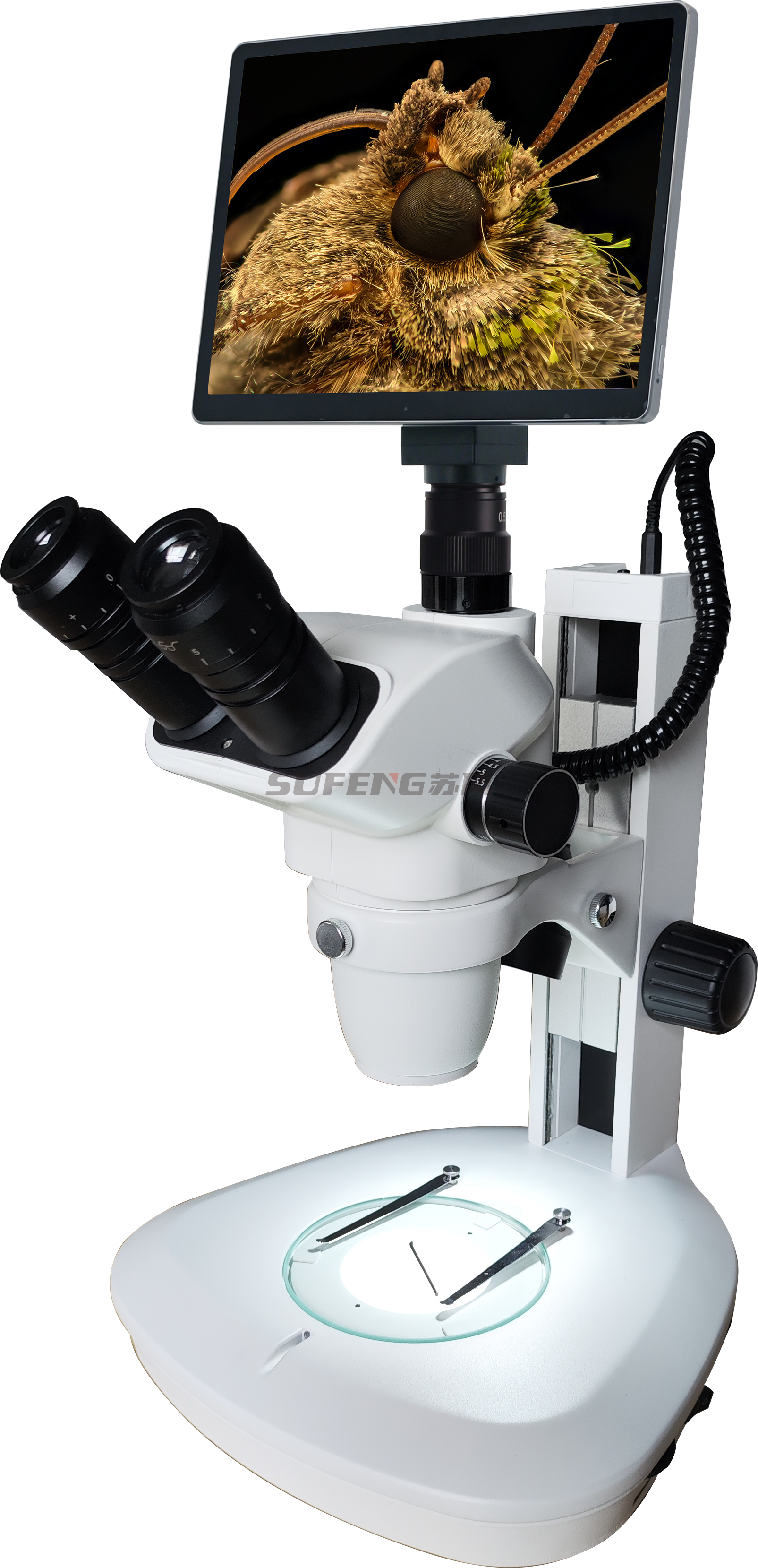

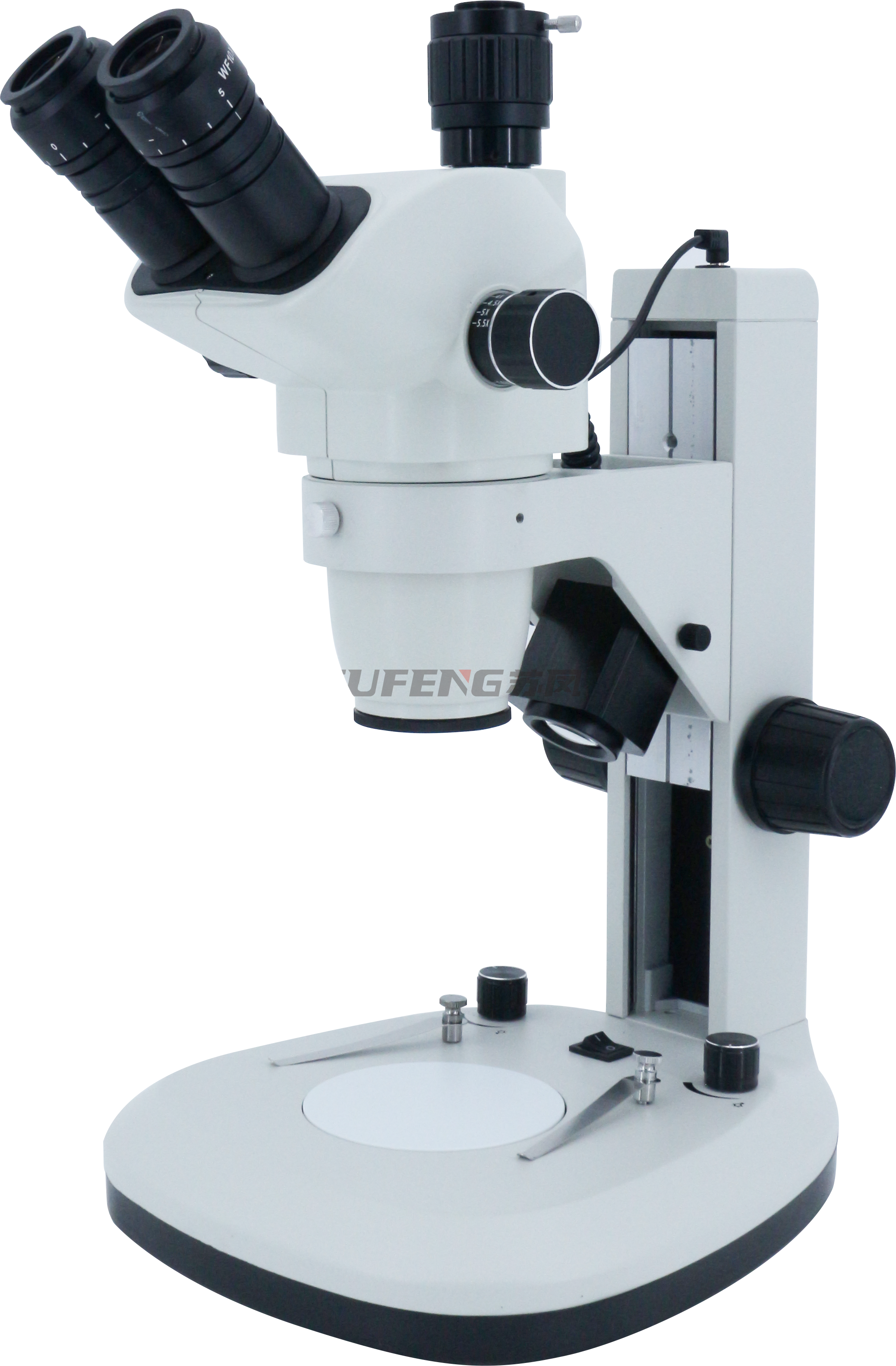

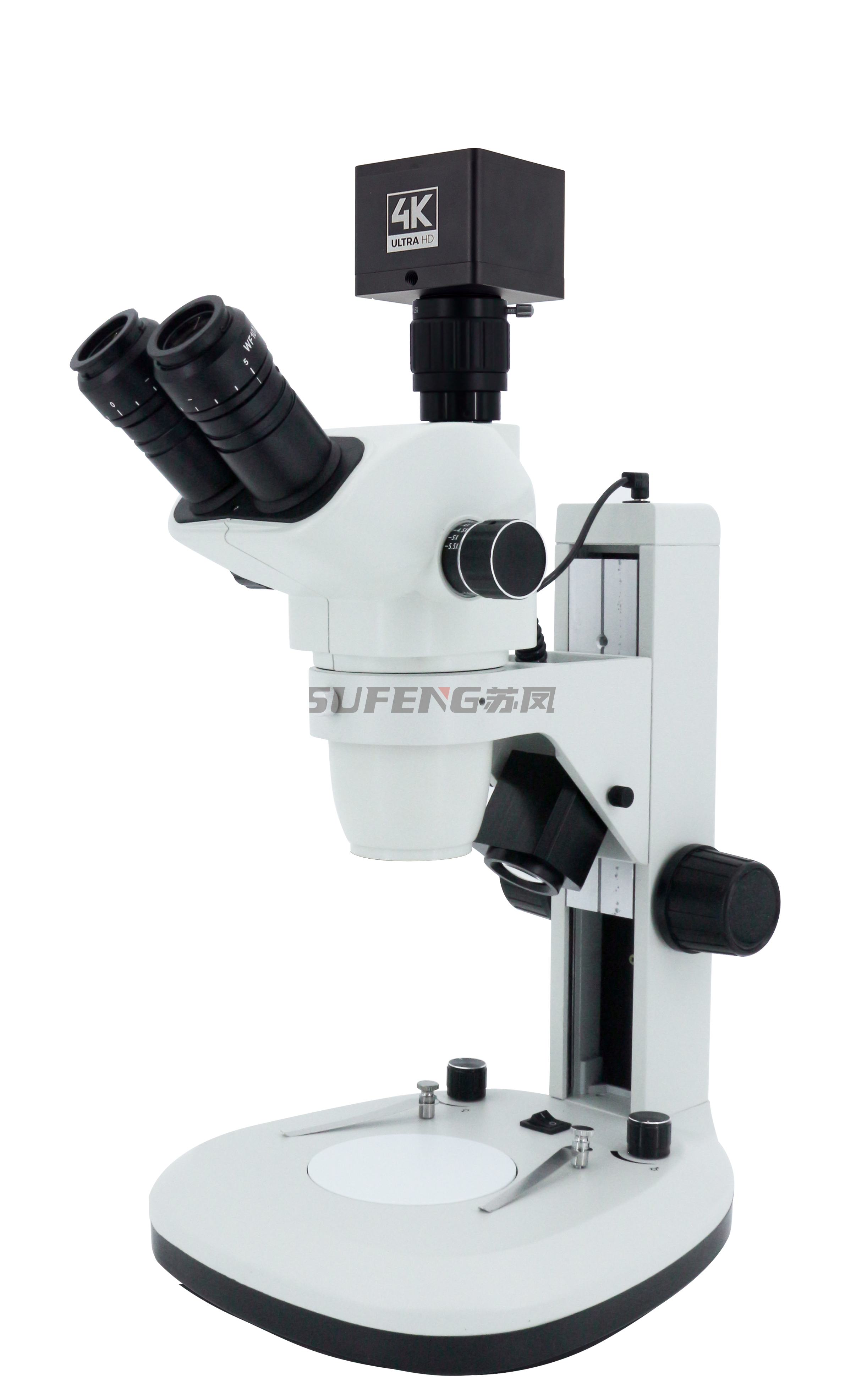

SMZ-180 Stereo microscope parameters

SMZ-180 series continuous zoom stereomicroscope, using WF10X super large field of view eyepiece, the viewing Angle can be adjusted, continuous zoom ratio 1:8.8, super long working distance, super large depth of field, clear imaging, wide field of view, is an ideal instrument for textile industry, agriculture, forestry, machinery and electronics and other industries and fields.

1、Full metal structure, binocular observation head, 45° tilt, pupil distance 52-75mm;

2、Total magnification of microscope optics (eyepiece multiplied by objective lens): 6.2X-55X;

3、Eyepiece lens: pure optical glass lens, optical components are coated. High eye point, wide Angle objective lens WF10X;

4、Objective lens: continuous zoom objective lens, 0.62X-5.5X;

5、Diopter adjustment: binocular diopter adjustment range ±6;

6、Focus mechanism: coarse adjustment range 60mm;

7、Field of view diameter: Φ4.4mm-Φ27.5mm;

8、Working distance: 115mm;

9、Light source: LED up and down light source, brightness adjustable;

10、
Optional accessories: WF15X/WF20X wide-angle eyepiece, ring LED lamp;
