| 光学系统Optical system | binocular observation head, pupil distance 52-75mm | 放大倍数Magnification | 7X-63X |
| 目镜Eyepiece lens | High eye point, wide Angle, large field of view, objective lens WF10X | 物镜Objective lens | continuous zoom objective lens, 0.7X-6.3X |
| 调焦机构Focus adjustment system | focusing range of 60mm | 视度调节Vision adjustment | binocular visual adjustment range ±6 |
| 视场直径Field of view diameter | Φ3.49mm-Φ33.8mm | 工作距离Working distance | 110mm |
| 光源Light source | LED upper and lower light source, brightness adjustable | 选配Optional | wide-angle eyepiece WF20X |

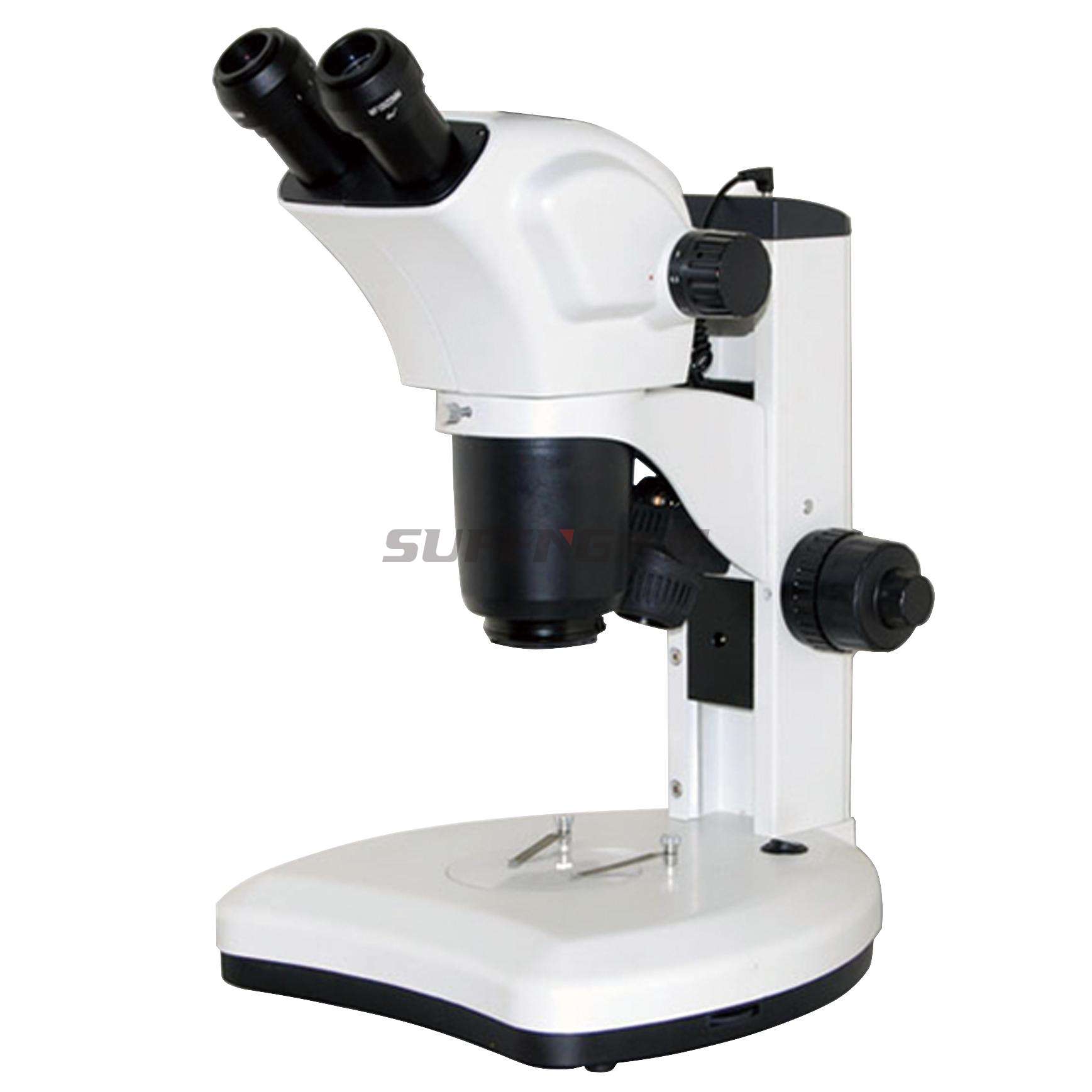

The SMZ-190 series continuous zoom stereomicroscope is an optical instrument that forms true three-dimensional images. Equipped with a long working distance imaging system and a large field of view eyepiece, it offers superior optical and mechanical performance, making it an essential tool for medical and biochemical genetic research. It can also be used in industries such as processing and electronics for product inspection, as well as in various educational institutions for teaching and experimental research.
1、All metal structure, binocular observation head, pupil distance 52-75mm;
2、Total magnification of microscope optics (eyepiece multiplied by objective lens): 7X-63X;
3、Eyepiece lens: pure optical glass lens, optical components are coated. High eye point, wide Angle, large field of view, objective lens WF10X;
4、Objective lens: continuous zoom objective lens, 0.7X-6.3X;
5、Visual adjustment: binocular visual adjustment range ±6;
6、Focusing mechanism: vertical arm coarse and fine adjustment coaxial adjustment mechanism, focusing range of 60mm;
7、Field of view diameter: Φ3.49mm-Φ33.8mm;
8、Working distance: 110mm;
9、Light source: LED upper and lower light source, brightness adjustable;
10、
Optional accessories: wide-angle eyepiece WF20X;
