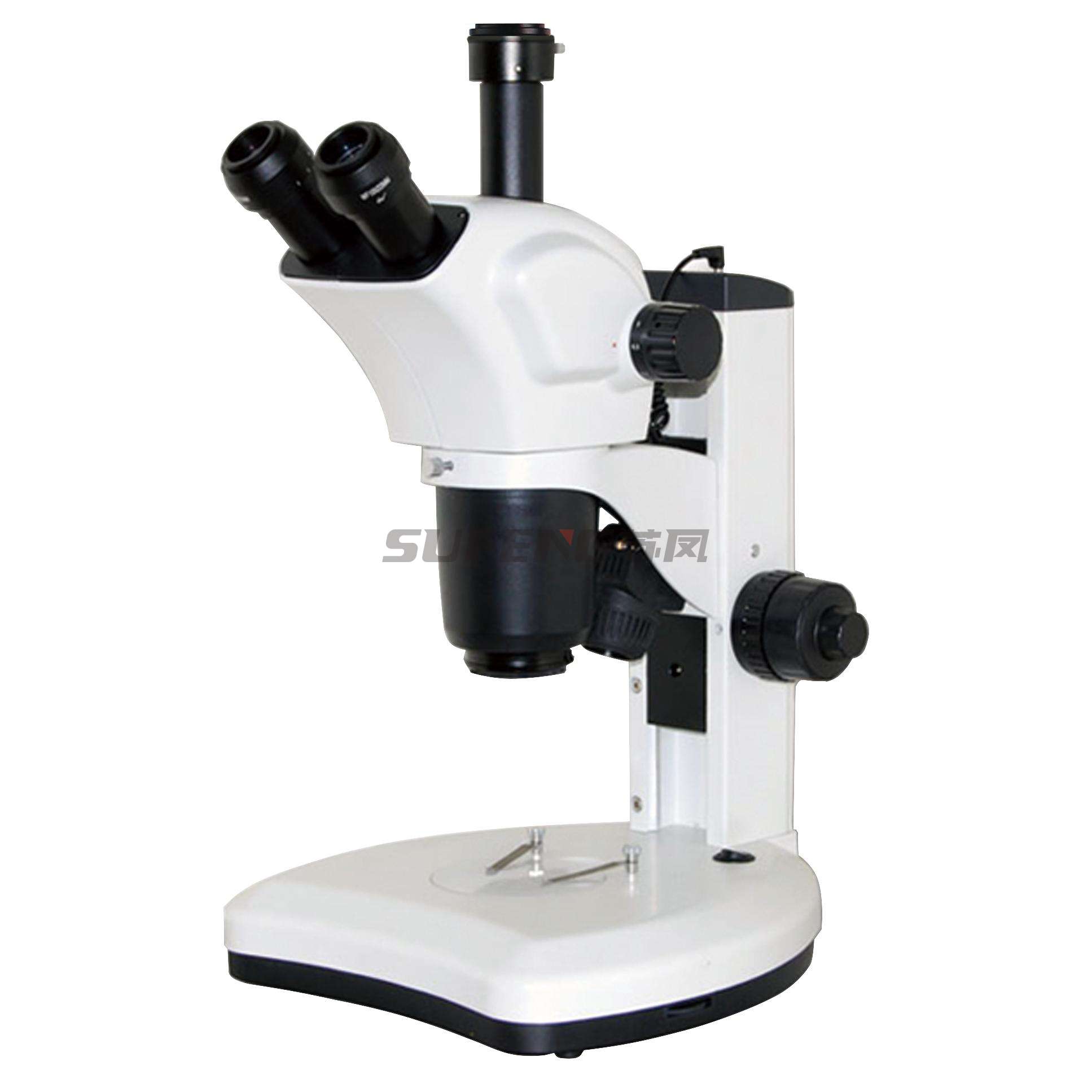

The SMZ-190 series continuous zoom stereomicroscope is an optical instrument that forms true three-dimensional images. Equipped with a long working distance imaging system and a large field of view eyepiece, it offers superior optical and mechanical performance, making it an essential tool for medical and biochemical genetic research. It can also be used in the processing industry, electronics sector for product inspection, as well as in various educational institutions for teaching and experimental research.
1、Full metal structure, three-eyed observation head, pupil distance 52-75mm, with standard photography interface;
2、Total magnification of microscope optics (eyepiece multiplied by objective lens): 7X-63X;
3、Eyepiece lens: pure optical glass lens, optical components are coated. High eye point, wide Angle, large field of view, objective lens WF10X;
4、Objective lens: continuous zoom objective lens, 0.7X-6.3X;
5、Vision adjustment: binocular vision adjustment range ±6;
6、Focusing mechanism: vertical arm coarse and fine adjustment coaxial adjustment mechanism, focusing range 60mm;
7、Field of view diameter: Φ3.49mm-Φ33.8mm;
8、Working distance: 110mm;
9、Light source: LED upper and lower light source, brightness adjustable;
10、
Optional accessories: wide-angle eyepiece WF20X,0.5x CTV interface, high-definition camera system, LCD digital touch display;
