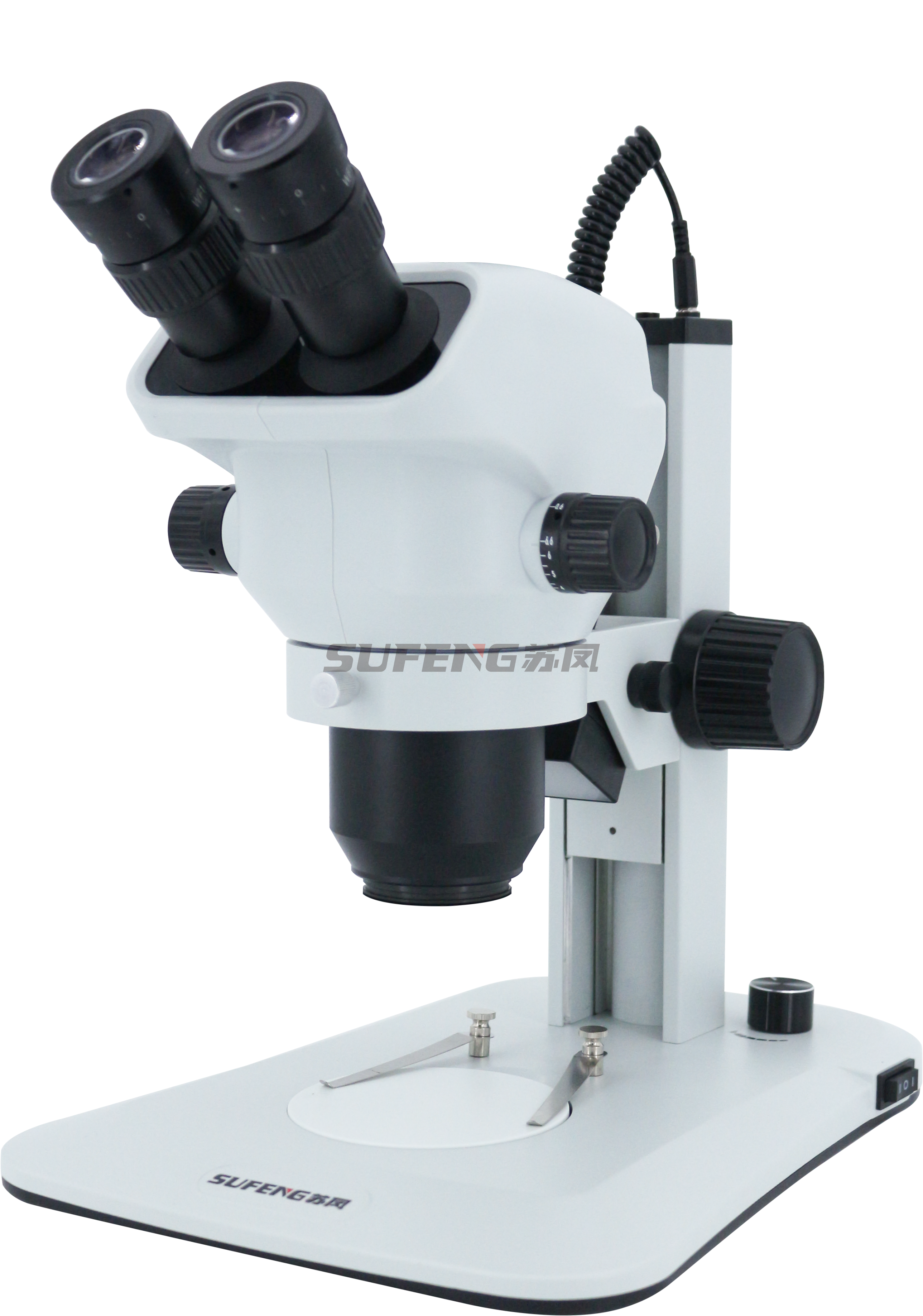

SMZ-1100 Binocular stereo microscope parameter

The SMZ-1100 series continuous zoom stereomicroscope features a Greenough optical system design, offering

a wide zoom ratio (11:1) and a long working distance (110mm). It is suitable for both macroscopic observations

at low magnification (0.6X) and close-up observations at high magnification (6.6X). The product can be custom-

ized with LED lighting and digital camera kits to meet the specific needs of research, experiments, teaching, or

industrial inspections.

1、Full metal structure, binocular eyepiece, 45° tilt, interpupillary distance adjustment, 55-75 mm;

2、Total magnification of microscope optics (eyepiece multiplied by objective lens): 6X-66X;

3、Eyepiece lens: pure optical glass lens, optical components are coated. High eye point objective lens WF10X;

4、Magnification ratio: 1:11;

5、Resolution: 3μm horizontally;

6、Objective lens: continuous zoom objective lens, 0.6X-6.6X;

7、Visual adjustment: binocular visual adjustment range ±6;

8、Working distance: 110mm;

9、Light source: LED up and down light source, brightness adjustable;

10、Optional accessories: ring LED light source;
