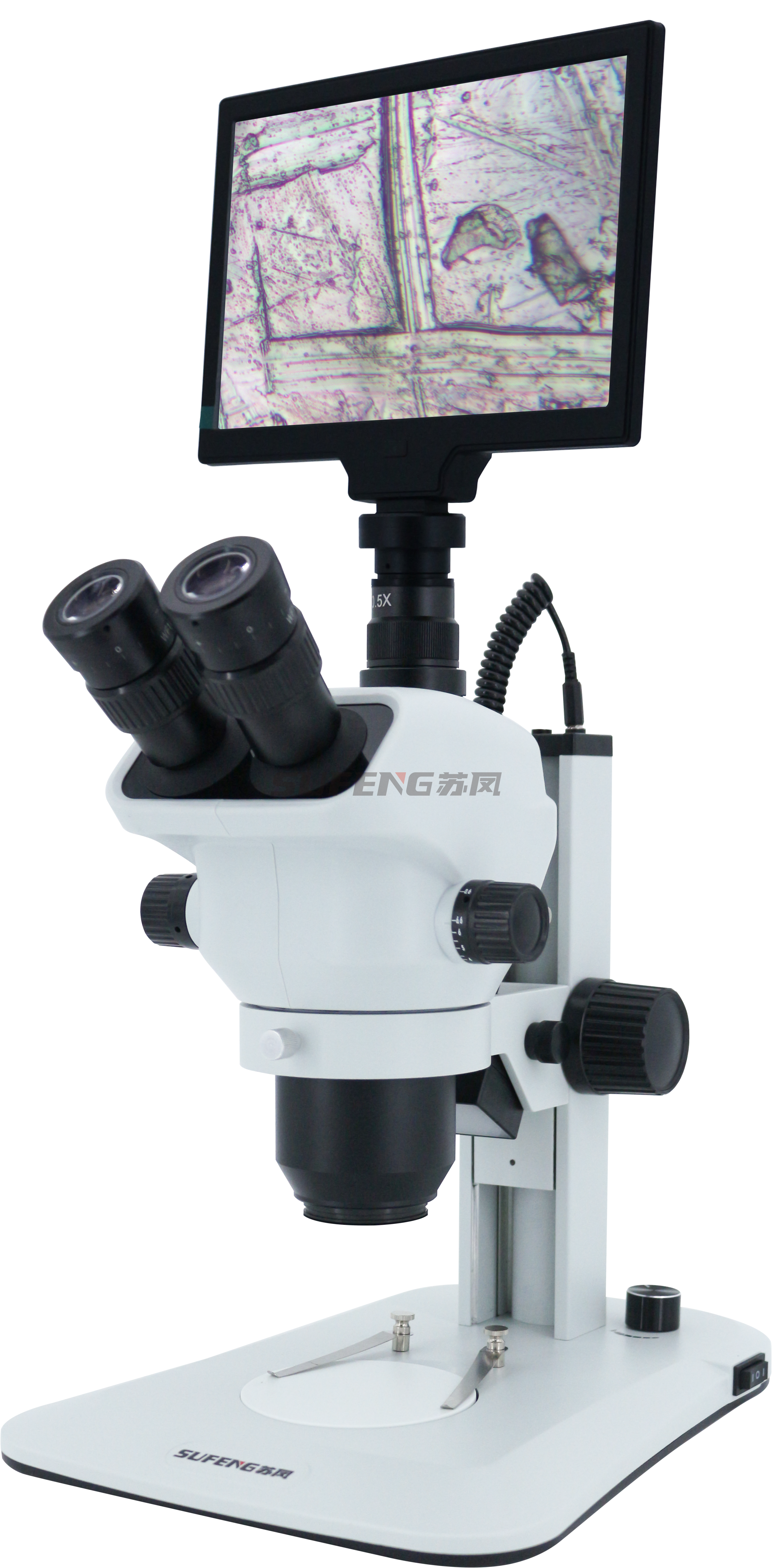

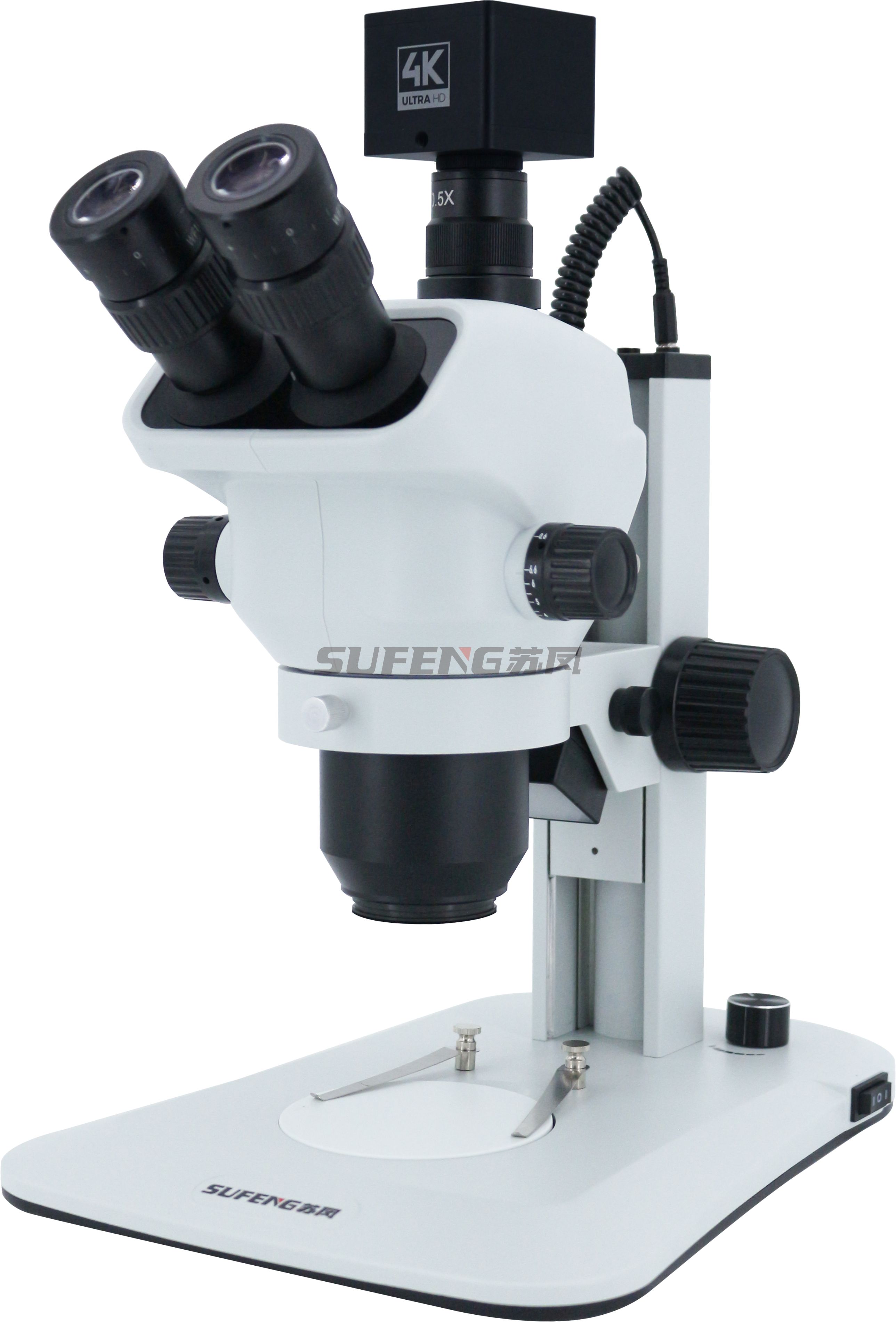

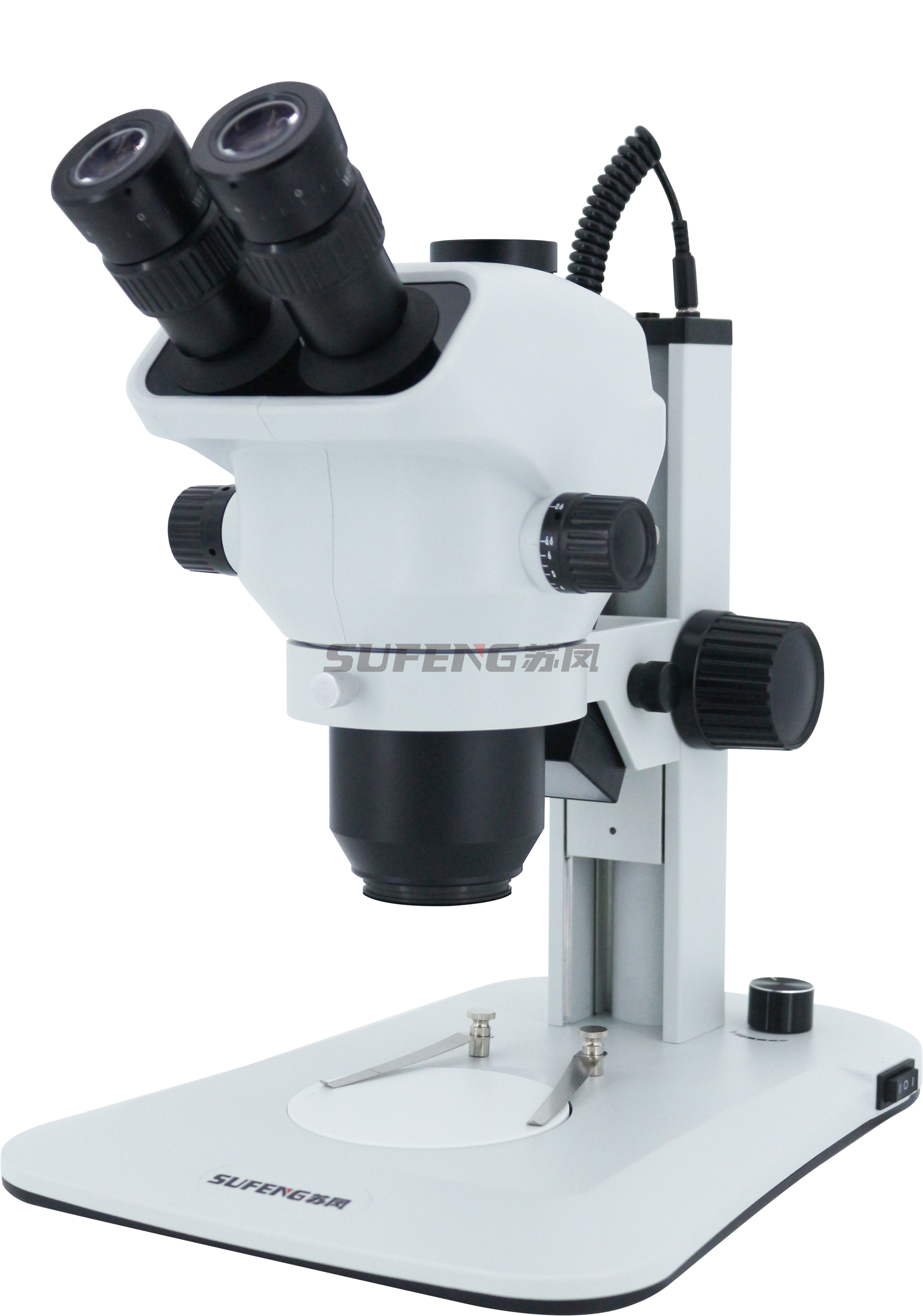

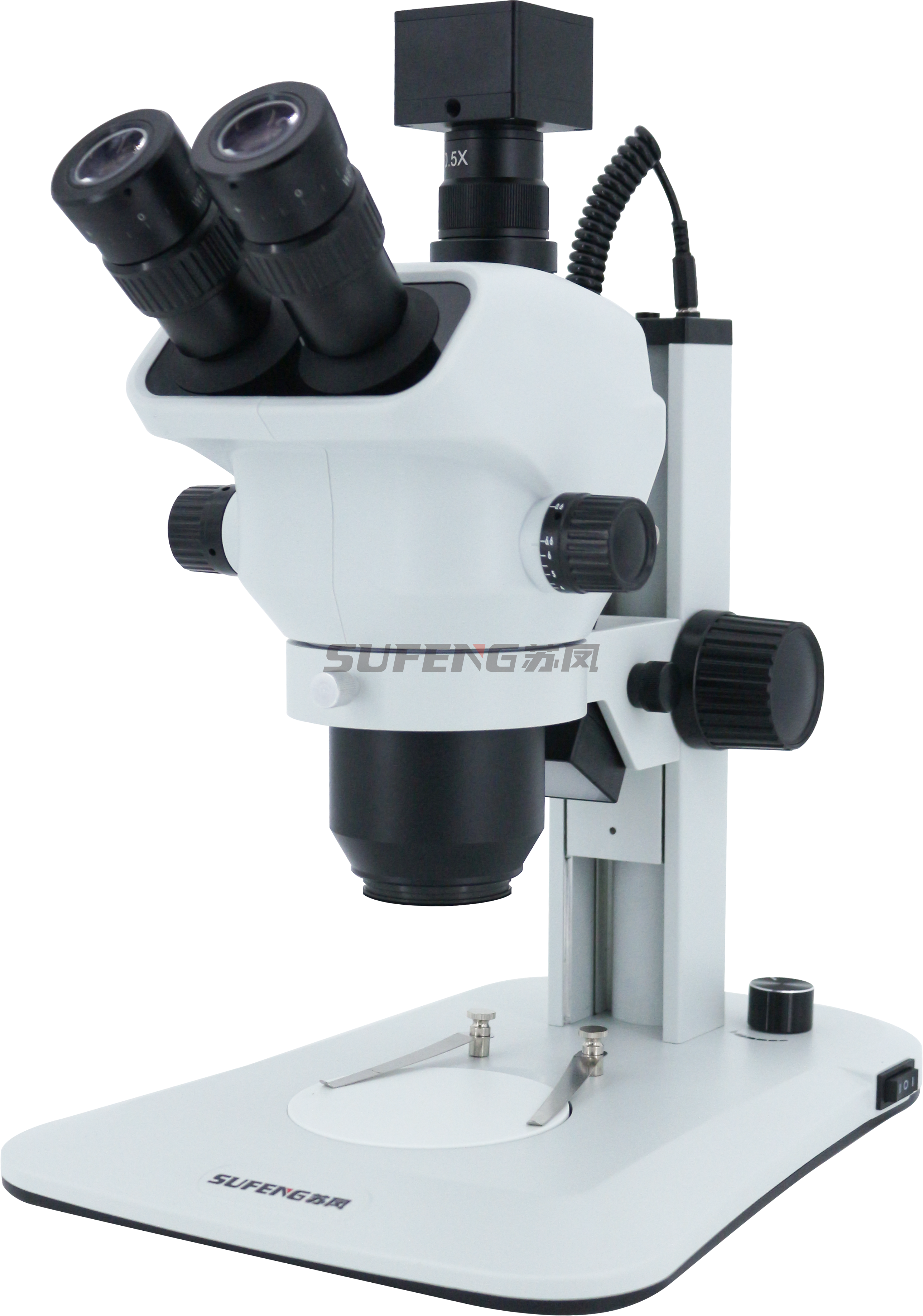

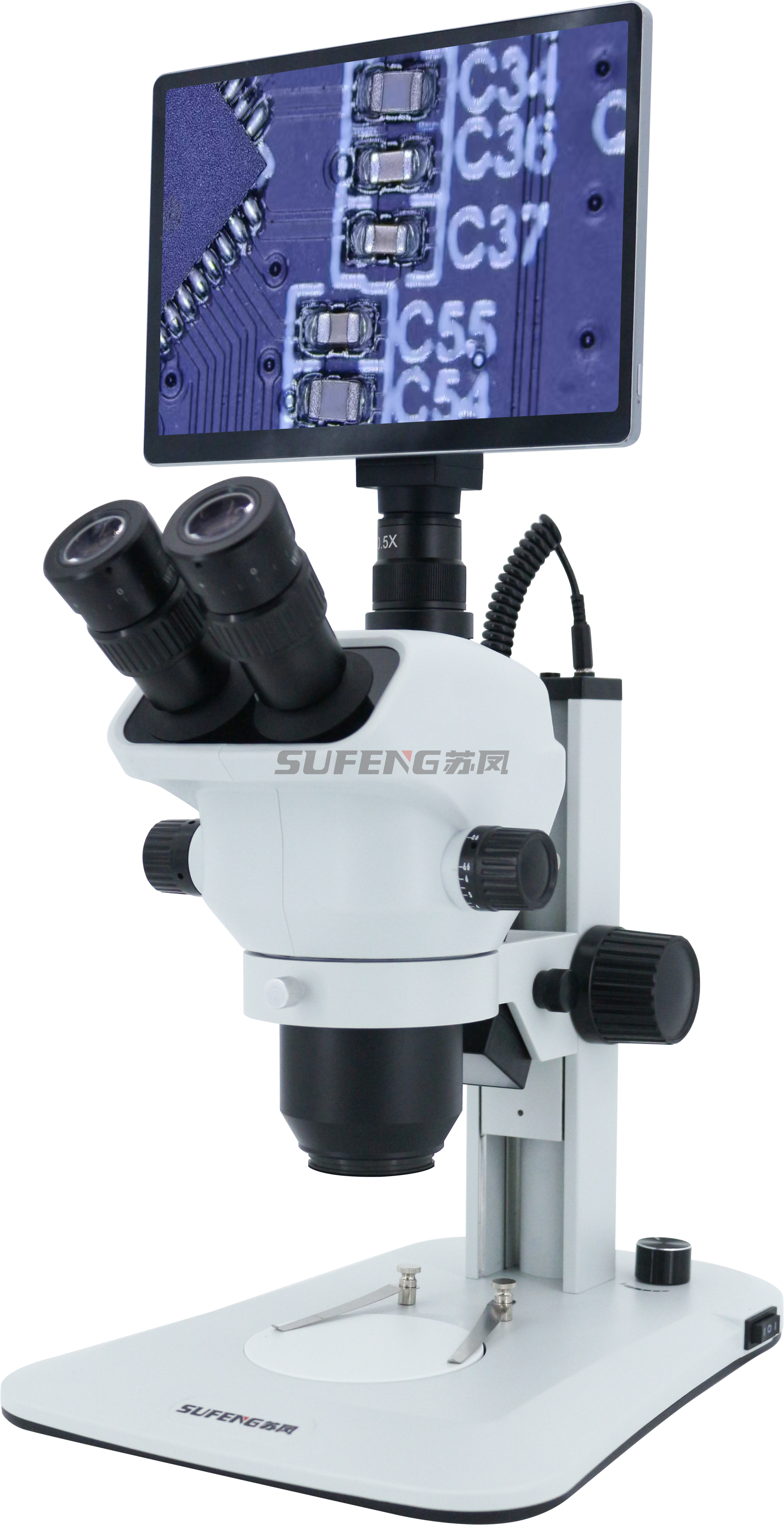

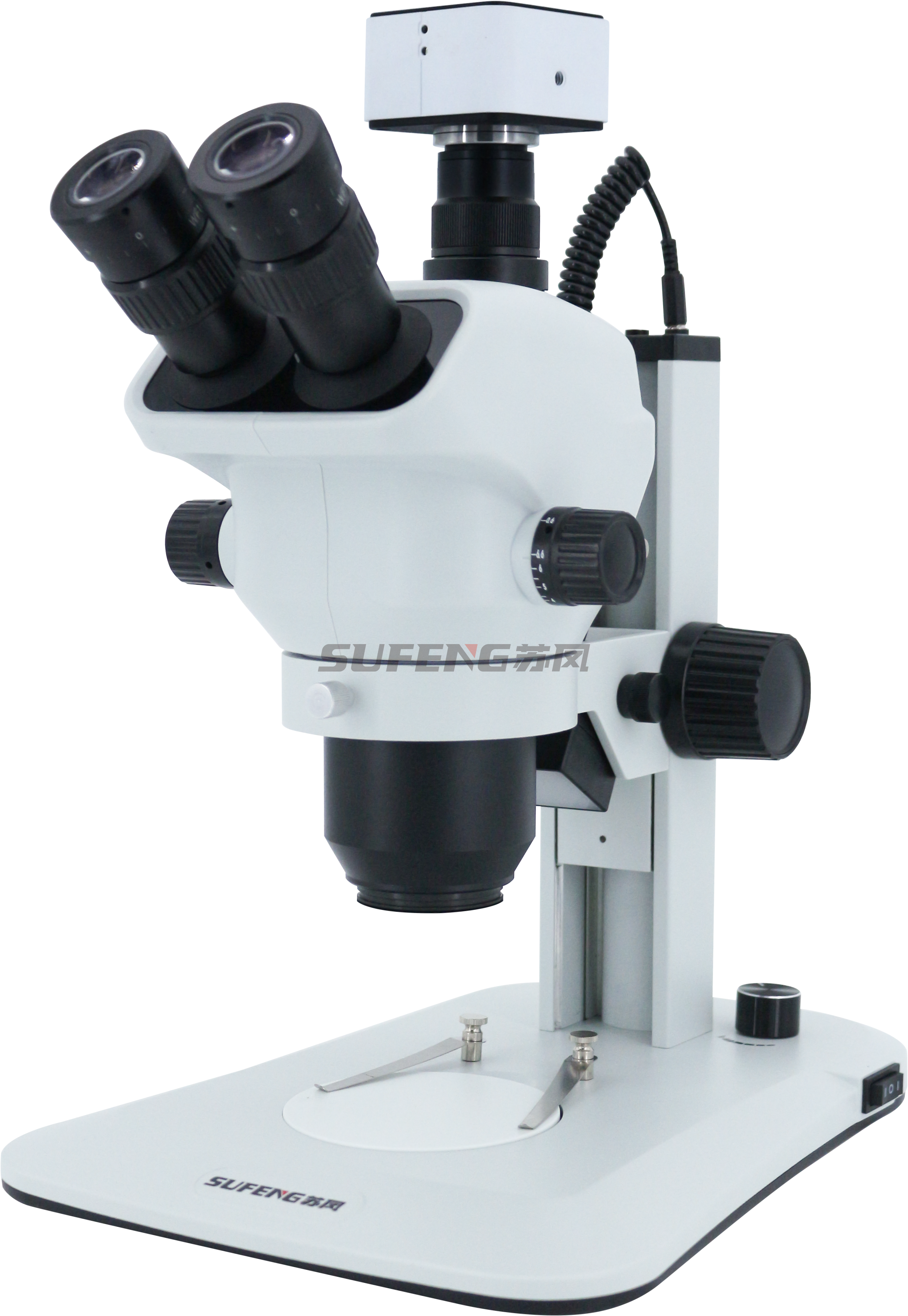

The SMZ-1100 series continuous zoom stereomicroscope features a Greenough optical system, offering
a wide zoom ratio (11:1) and a long working distance (110mm). It is suitable for both macroscopic obser-
vations at low magnification (0.6X) and close-up observations at high magnification (6.6X). The product
can be customized with LED lighting and digital camera kits to meet the specific needs of research, exper-
iments, teaching, or industrial inspections。
1、Full metal structure, three-eyed eyepiece barrel, 45° tilt, interpupillary distance adjustment, 55-75 mm;
2、Total magnification of microscope optics (eyepiece multiplied by objective lens): 6X-66X;
3、Eyepiece lens: pure optical glass lens, optical components are coated. High eye point objective lens WF10X;
4、Magnification ratio: 1:11;
5、Resolution: 3μm horizontally;
6、Objective lens: continuous zoom objective lens, 0.6X-6.6X;
7、Diopter adjustment: binocular diopter adjustment range ±6;
8、Working distance: 110mm;
9、Light source: LED up and down light source, brightness adjustable;
10、Optional accessories: ring LED light source, 0.5x CTV interface, HD camera system, LCD digital touch display;
