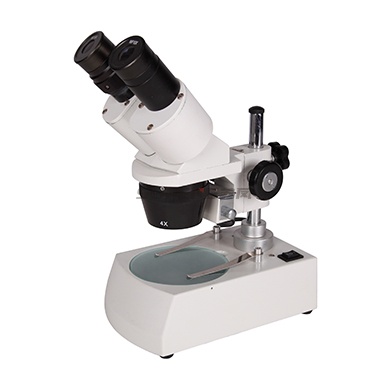

The XT-III series stereomicroscope is a binocular optical instrument designed for observation. It features a 45° inclined tube, fully coated optical components, adjustable eye relief and interpupillary distance, a large working distance, a wide field of view, high resolution, and clear, three-dimensional images. This microscope is widely used in the electronics industry, for inspecting instruments and meters, assembling and repairing small parts, as well as for the dissection, observation, and research of animals and plants. It is suitable for use in schools, factories, research institutes, carving, geology, archaeology, and home observation.
1、Full metal structure, binocular 45° oblique tube, interpupillary distance 55mm-75mm;
2、Total magnification of microscope optics (eyepiece multiplied by objective lens): 40X;
3、Eyepiece lens: pure optical glass lens, optical components are coated. With large field of view WF10X;
4、Objective lens: 2X,4X;
5、View adjustment: ±5 diopter;
6、Focus mechanism: coarse adjustment range 40mm;
7、Carrying table: Φ90mm frosted glass/black and white version;
8、Working distance: 57mm;
9、
Light source: upper and lower light source, 12V/10W halogen lamp;
